Запчасти автогрейдера SHANTUI SG18
1. Монтажная часть двигателя
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-01-00001 | Подушка в сборе | 8 |
| 2 | 12P-01-00003 | Втулка | 4 |
| 3 | 12P-01-00002 | Шайба | 4 |
| 4 | 01011-51620 | Болт | 4 |
| 5 | 12P-01-02000 | Крепление левое | 1 |
| 6 | 12P-01-04000 | Крепление правое | 1 |
| 7 | 01010-51230 | Болт | 8 |
| 8 | 01643-31232 | Шайба | 8 |

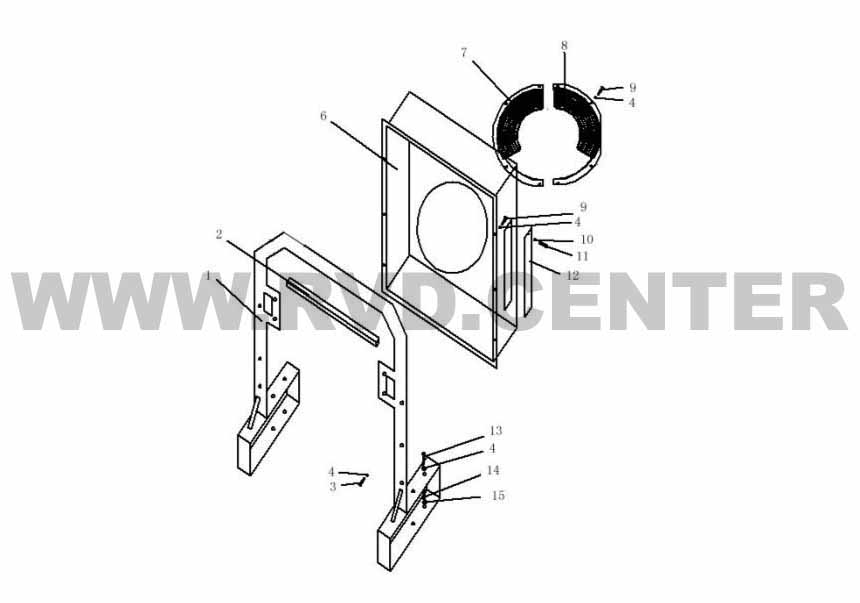

2. Радиатор в сборе
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-03-07000 | Скоба | 1 |
| 2 | 12P-03-00005 | Прокладка | 1 |
| 3 | 01010-51025 | Болт | 6 |
| 4 | 01643-31032 | Шайба | 20 |
| 6 | 12P-03D-01000 | Защитный кожух | 1 |
| 7 | 12P-03D-03000 | Защита | 1 |
| 8 | 12P-03D-02000 | Защита | 1 |
| 9 | 01010-51020 | Болт | 10 |
| 10 | 01643-30823 | Шайба | 4 |
| 11 | 01010-50820 | Болт | 4 |
| 12 | 12P-03-00004 | Уплотнение | 2 |
| 13 | 01010-51045 | Болт | 4 |
| 14 | 01010-51445 | Болт | 4 |
| 15 | 01643-31445 | Шайба | 4 |

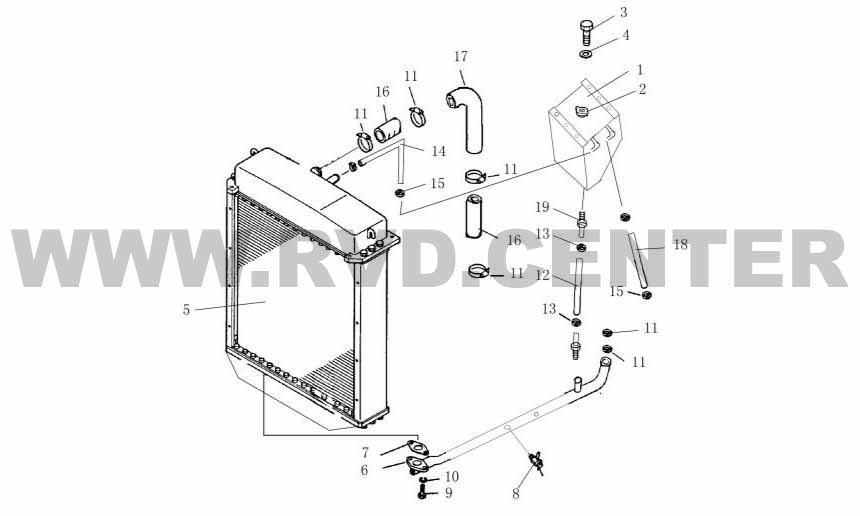

3. Трубопровод радиатора
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-03-02000 | tank | 1 |
| 2 | 12P-03-03000 | cap | 1 |
| 3 | 01010-50820 | Болт | 6 |
| 4 | 01643-30823 | Шайба | 6 |
| 5 | 12P-03-06000 | tank | 1 |
| 6 | 12P-03-01000 | Трубка | 1 |
| 7 | 16Y-03B-00002 | Прокладка | 1 |
| 8 | 16Y-03B-01000 | valve | 1 |
| 9 | 01010-51235 | Болт | 1 |
| 10 | 01643-31232 | Шайба | 1 |
| 11 | 07281-00709 | clip | 2 |
| 12 | 07260-22092 | hose | 2 |
| 13 | 07281-20359 | clip | 6 |
| 14 | 07270-41010 | hose | 1 |
| 15 | 07280-01620 | clip | 4 |
| 16 | 12P-03-00003 | hose | 2 |
| 17 | 12P-03-00002 | Трубка | 1 |
| 18 | 07270-41011 | Трубка | 1 |
| 19 | 12P-03-00001 | joint | 2 |

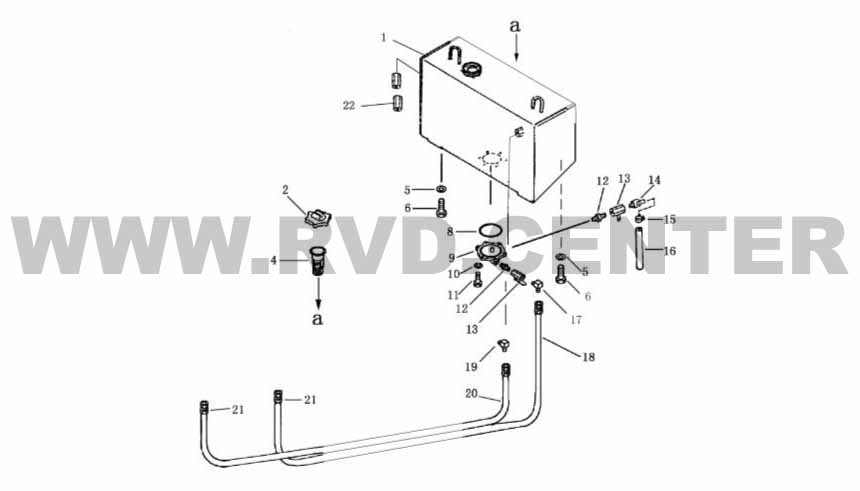

4. Топливный бак и трубопровод
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-04-01000 | fuel tank | 1 |
| 2 | 07050-21200 | Крышка | 1 |
| 4 | 07056-18416 | strainer | 1 |
| 5 | 01643-31445 | Шайба | 4 |
| 6 | 01010-31440 | Болт | 4 |
| 8 | 07000-02135 | О-кольцо | 1 |
| 9 | 16Y-04-00006 | flange plate | 1 |
| 10 | 01643-31032 | Шайба | 6 |
| 11 | 01010-51025 | Болт | 6 |
| 12 | 16Y-04-00007 | nipple | 2 |
| 13 | 07700-40460 | valve | 2 |
| 14 | 16Y-04-00008 | nipple | 1 |
| 15 | 07280-01210 | clamp | 1 |
| 16 | 07270-01265 | Трубка | 1 |
| 17 | 12P-04-00004 | nipple | 1 |
| 18 | 12P-04-00002 | Трубка | 1 |
| 19 | 12P-04-00003 | nipple | 1 |
| 20 | 12P-04-00001 | Трубка | 1 |
| 21 | 07281-00259 | clip | 4 |
| 22 | 12P-60-03000 | dipstick | 2 |
5. Рычаг управления подачей топлива
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-05-07000 | knob | 1 |
| 2 | 12P-05-00003 | frictiondisc | 1 |
| 3 | 12P-05-00001 | rod | 1 |
| 4 | 12P-05-03000 | plate | 1 |
| 5 | 01052-51280 | Болт | 1 |
| 6 | 01643-31232 | Шайба | 7 |
| 7 | 12P-05-00002 | spring | 1 |
| 8 | 01593-11210 | cap | 1 |
| 9 | 04050-13022 | pin | 1 |
| 10 | 04050-40847 | bearing | 1 |
| 11 | 01580-10806 | Гайка | 2 |
| 12 | 04245-00860 | rod | 1 |
| 13 | 12P-05-00004 | yoke | 1 |
| 14 | 04250-40847 | pincotter | 2 |
| 15 | 01641-20812 | Шайба | 1 |
| 16 | 04205-10826 | pin | 1 |
| 17 | 12P-05-04000 | lever | 1 |
| 18 | 01010-50830 | Болт | 1 |
| 19 | 01643-30823 | Шайба | 1 |
| 20 | 12P-05-02000 | bracket | 1 |
| 21 | 01010-51225 | Болт | 6 |
| 22 | 06123-02018 | bearing | 2 |
| 23 | 04010-10519 | key | 1 |
| 24 | 12P-05-05000 | shaft | 1 |
| 25 | 04256-40622 | end | 2 |
| 26 | 01580-10605 | Гайка | 4 |
| 27 | 12P-05D-01000 | shaft | 1 |
| 28 | 12P-05-08000 | bracket | 1 |
| 29 | 12P-05-09000 | bracket | 1 |
| 30 | 01643-31030 | Шайба | 2 |
| 31 | 01010-51020 | Болт | 2 |
| 32 | 01643-30623 | Шайба | 4 |
6. Педаль тормоза
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-05-01000 | Педаль | 1 |
| 2 | 01010-50820 | Болт | 3 |
| 3 | 01643-30623 | Шайба | 3 |
| 4 | 01580-10605 | Гайка | 4 |
| 5 | 04256-40622 | end | 2 |
| 6 | 01643-30623 | Шайба | 4 |
| 7 | 12P-05-00006 | rod | 1 |
| 8 | 09290-10000 | absorber | 1 |
| 9 | 12P-05-00005 | rod | 1 |
| 10 | 01580-10806 | Гайка | 2 |
7. Карданный вал
| № | Каталожный номер | Описание |
Количество |
| 1 | 13P-12-01000 | Вал карданный | 1 |
| 2 | 02030-20864 | Болт | 8 |
| 3 | 01640-21323 | Шайба | 8 |
8. Крепление трансмиссии
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-01-00001 | damper | 8 |
| 2 | 12P-15D-00001 | Втулка | 4 |
| 3 | 12P-01-00002 | shim | 4 |
| 4 | 01643-31645 | Шайба | 4 |
| 5 | 01011-81610 | Болт | 4 |
| 6 | 01010-52090 | Болт | 4 |
| 7 | 01643-32060 | Шайба | 4 |
| 8 | 12P-15D-01000 | bracket | 1 |
| 9 | 01010-51050 | Болт | 4 |
| 10 | 01643-31032 | Шайба | 16 |
| 11 | 13P-15-01000 | transmission case | 1 |
| 12 | 01010-51090 | Болт | 12 |
9. Модуль управления трансмиссией
| № | Каталожный номер | Описание | Количество |
| 15P-25-00000 | transmission control | 1 | |
| 1 | 15P-25-01000 | body, case | 1 |
| 2 | 15P-25-00002 | Крышка | 1 |
| 3 | 01641-20508 | Шайба | 7 |
| 4 | 01220-40516 | Винт M5X16 | 7 |
| 5 | 15P-25-00001 | plate | 1 |
| 6 | 01010-51030 | Болт | 3 |
| 7 | 01643-31032 | Шайба | 3 |
| 8 | 01016-30816 | Болт | 2 |
| 9 | 01641-00810 | Шайба | 2 |
| 10 | 15P-25-02000 | controller | 1 |
10. Передний мост
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-45-10000 | tire | 2 |
| 2 | 12P-46-09000 | hub | 2 |
| 3 | 01010-52045 | Болт M20×45 | 2 |
| 4 | 12P-46-00007 | Крышка | 2 |
| 5 | 12P-46-00010 | Наборное кольцо | 6 |
| 6 | 12P-46-00019 | ring | 8 |
| 7 | GB297-94 | Подшипник 32018 | 4 |
| 8 | 07021-01045 | collar M10×1 | 2 |
| 9 | 12P-46-01000 | front hub | 2 |
| 10 | 12P-46-00006 | ring | 2 |
| 11 | 12P-46-06000 | steering joint, l | 1 |
| 12 | 12P-46-02000 | steering joint, r | 1 |
| 13 | 01302-21230 | Винт M12×30 | 2 |
| 14 | 12P-46-00004 | pin | 2 |
| 15 | 12P-46-00005 | Крышка | 4 |
| 16 | 12P-46-00022 | Наборное кольцо | 8 |
| 17 | 12P-46-00023 | Наборное кольцо | 8 |
| 18 | 12P-46-00024 | Наборное кольцо t | 8 |
| 19 | 12P-46-00009 | pin | 2 |
| 20 | 12P-46-00011 | shim, back-up | 8 |
| 21 | 12P-46-00008 | Втулка | 2 |
| 22 | 01643-33080 | Шайба 30 | 4 |
| 23 | 01590-13033 | Гайка M30×3 | 4 |
| 24 | 04050-15055 | pin cotter 5×55 | 4 |
| 25 | 12P-46-00020 | joint plate | 2 |
| 26 | 12P-46-00013 | Втулка | 2 |
| 27 | 12P-46-00012 | pin | 2 |
| 28 | 12P-46-08000 | joint retainer | 1 |
| 29 | GB6171-86 | Гайка M52X3 | 1 |
| 30 | 07020-01021 | collar M10X1 | 16 |
| 31 | 12P-46-00025 | steering rod | 1 |
| 32 | 12P-46-04000 | rod | 1 |
| 33 | 12P-46-00002 | pin | 2 |
| 34 | GB304.5-81 | end bearing GE35ES | 2 |
| 35 | GB6171-86 | Гайка M52X3 | 1 |
| 36 | 12P-46-07000 | joint retainer | 1 |
| 37 | 12P-46-05000 | bridge support | 1 |
| 38 | 12P-46-00026 | Втулка | 2 |
| 39 | 12P-46-00027 | gasket | 4 |
| 40 | 12P-46-00001 | Крышка | 1 |
| 41 | 01643-31232 | Шайба 12 | 15 |
| 42 | 01010-51235 | Болт M12X35 | 7 |
| 43 | 07012-00048 | seal | 2 |
| 44 | 12P-46-00017 | shim, back-up | 2 |
| 45 | 12P-46-00014 | Втулка | 2 |
| 46 | 12P-46-00015 | pin | 2 |
| 47 | 12P-46-00016 | Втулка | 2 |
| 48 | 12P-46-00028 | Крышка | 2 |
| 49 | 01643-31032 | Шайба 10 | 22 |
| 50 | 01010-51020 | Болт M10X20 | 22 |
| 51 | 12P-46-03000 | joint support | 2 |
| 52 | 12P-46-00018 | Втулка | 2 |
| 53 | 12P-46-00003 | pin | 4 |
| 54 | 04082-00105 | end shaft, back-up plate | 7 |
| 55 | 01643-32260 | Шайба 22 | 20 |
| 56 | 01050-32255 | Болт M22X1.5X55 | 20 |
| 57 | 01252-51230 | Болт M12X30 | 12 |
| 58 | 12P-46-00030 | Шайба | 4 |
| 59 | 01643-30823 | Шайба | 8 |
| 60 | 01010-50816 | Болт | 8 |
| 61 | 01602-21236 | Шайба | 12 |
| 62 | 12P-46-00021 | pin | 2 |
| 63 | GB5801-86 | Needle bearing 6354909 | 4 |
| 64 | GB301-84 | bearing | 2 |
| 65 | 12P-46-00029 | pin | 1 |
| 66 | 04064-03515 | ring | 2 |
| 67 | 01010-51225 | Болт M12*25 | 8 |
| 68 | 04082-00209 | plate | 4 |
11. Задний мост
| № | Каталожный номер | Описание | Количество |
| 1 | 01051-52460 | Болт | 8 |
| 2 | 01643-32460 | Шайба | 16 |
| 3 | 01599-02425 | Гайка | 8 |
| 4 | 12P-18-10000 | differential framework | 1 |
| 5 | 12P-18-20000 | rear axle support | 2 |
12. Дифференциал
| № | Каталожный номер | Описание | Количество |
| 1 | PY180.39.01-12 | Крышка | 1 |
| 2 | GB/T70.1-2000 | Болт M12*20 | 3 |
| 3 | PY180.39.01-11 | Регулировочная гайка | 2 |
| 4 | GB/T32.3-1988 | Болт M10*1*20 | 4 |
| 5 | GB/T343-1994 | Стальная проволока φ1.5*80 | 2 |
| 6 | PY180.39.01-10 | Фиксатор болта | 2 |
| 7 | GB/T879.1-2000 | Pin 16*65 | 1 |
| 8 | GB/T297-1994 | Bear 32016 | 2 |
| 9 | GB/T5782-2000 | Болт M16*35 | 20 |
| 10 | NS180-1.1 | Balance gear | 1 |
| 11 | PY180.39.01-09 | Discal gear | 1 |
| 12 | 402223 | plug ZG3/4 | 3 |
| 13 | GB/T93-1987 | Шайба 8 | 8 |
| 14 | GB/T5782-2000 | Болт M8*25 | 8 |
| 15 | PY180.39.01-15 | Крышка | 1 |
| 16 | PY180.39.01-14 | Шайба | 1 |
| 17 | GB/T879.1-2000 | Pin 16 *40 | 1 |
| 18 | PY180.39.01-13 | Differential housing | 1 |
| 19 | GB/T93-1987 | Шайба 12 | 7 |
| 20 | GB/T93-1987 | Шайба 14 | 1 |
| 21 | GB/T5782-2000 | Болт M12*55 | 7 |
| 22 | GB/T5782-2000 | Болт M14*55 | 1 |
| 23 | PY180.39.01-01 | Tighten Гайка | 1 |
| 24 | PY180.39.01.01-01 | Input flange | 1 |
| 25 | PY180.39.01.01-02 | Dustproof Крышка | 1 |
| 26 | GB/T9877.1-88 | Sealing ring FB75*95*10 | 2 |
| 27 | PY180.39.01-03 | Sealing Крышка | 1 |
| 28 | PY180.39.01-04 | gasket | 1 |
| 29 | GB/T297-1994 | Подшипник 30311 | 2 |
| 30 | PY180.39.01-06 | Bearing sheath | 1 |
| 31 | PY180.39.01-05 | Adjusting Шайба | 1 |
| 32 | PY180.39.01-07 | Adjusting Шайба | 1 |
| 33 | PY180.39.01-08 | shaft sleeve | 1 |
| 34 | PY180.39.01-02 | Drive angle gear | 1 |
| 35 | GB/T283-1994 | Подшипник NJ307 | 1 |
13. Узел балансировки
| № | Каталожный номер | Описание | Количество |
| 1 | NS180-1.1-1 | Balance gear shell | 1 |
| 2 | NS180-1.1-7 | Spline sheath | 2 |
| 3 | NS180-1.1-8 | Sheath | 1 |
| 4 | NS180-1.1-10 | Spring seat | 2 |
| 5 | NS180-1.1-4 | Prick spring | 2 |
| 6 | NS180-1.1-2 | Ring | 2 |
| 7 | NS180-1.1-6 | Active ring | 2 |
| 8 | NS180-1.1-2 | Ring | 1 |
| 9 | NS180-1.1-5 | Ring | 1 |
| 10 | NS180-1.1-9 | Center ring | 1 |
| 11 | NS180-1.1-11 | Balance gear shell | 1 |
| 12 | GB93-87 | Шайба 12 | 16 |
| 13 | GB70-85 | Болт M12*70 | 16 |

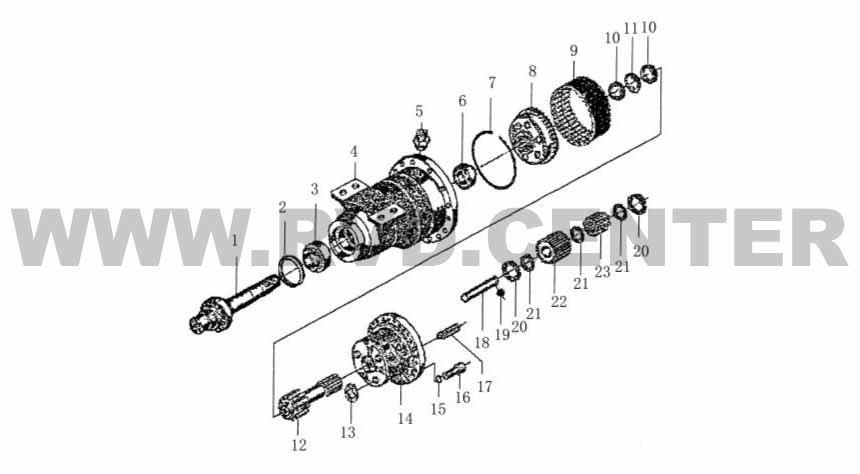

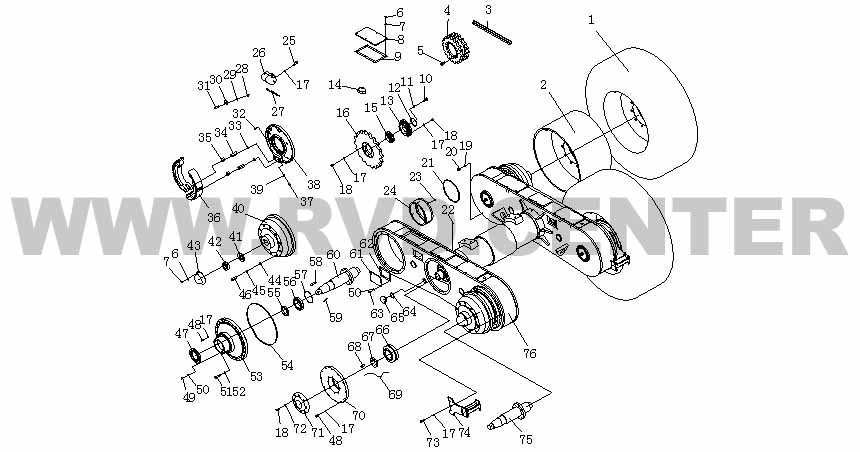

14. Редуктор заднего моста (планетарный редуктор)
| № | Каталожный номер | Описание | Количество |
| 1 | PY180.39.02-01 | double row chain wheel shaft | 2 |
| 2 | 991503402 | Сальник A165*190*13 | 2 |
| 3 | GB/T297-1994 | Подшипник 33022 | 2 |
| 4 | PY180.39.02-02 | Bridge shell | 2 |
| 5 | Q9001 | Deflation valve M10*1 | 2 |
| 6 | GB/T297-1994 | Подшипник 33019 | 2 |
| 7 | PY180.39.02-06 | Стальная проволока retainer | 2 |
| 8 | PY180.39.02-04 | Gear loop support | 2 |
| 9 | PY180.39.02-05 | Gear loop | 2 |
| 10 | PY180.39.02-03 | Circinal Гайка | 4 |
| 11 | PY180.39.02-13 | Стоповая шайба | 2 |
| 12 | PY180.39.02-11 | Вал-шестерня | 2 |
| 13 | GB/T894.1-0-1986 | Зажимное кольцо | 6 |
| 14 | PY180.39.02-07 | Axle frame | 2 |
| 15 | GB/T93-1987 | Шайба | 50 |
| 16 | GB/T70.1-2000 | Болт M14*40 | 50 |
| 17 | GB/T879.1-2000 | Column pin 16*40 | 4 |
| 18 | PY180.39.02-12 | axle | 6 |
| 19 | GB08-89 | Steel ball 3/8 | 6 |
| 20 | PY180.39.02-08 | Шайба | 12 |
| 21 | PY180.39.02-09 | Фиксатор | 18 |
| 22 | PY180.39.02-10 | Планетарная шестерня | 6 |
| 23 | GB309-84 | Игольчатый подшипник 6*9.8 | 168 |

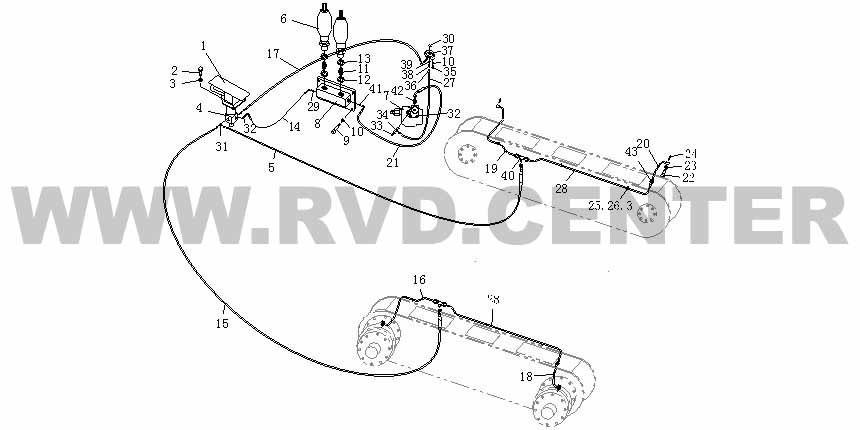

15. Тормозная система
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-77-01000 | Brake pedal ass’y | 1 |
| 2 | 01010-50825 | Болт M8*25 | 3 |
| 3 | 01641-20812 | Шайба 8 | 9 |
| 4 | 12P-77-04000 | Valve ass’y | 1 |
| 5 | 12P-77-07000 | Hose ass’y | 1 |
| 6 | 12P-77-11000 | Accumulator | 2 |
| 7 | 12P-77-15000 | Valve | 1 |
| 8 | 12P-77-09000 | Bracket | 1 |
| 9 | 01010-51030 | Болт M10*30 | 4 |
| 10 | 01643-31032 | Шайба 10 | 6 |
| 11 | 12P-77-00001 | Joint | 2 |
| 12 | JB982-22 | Шайба 22 | 2 |
| 13 | JB982-27 | Шайба 27 | 2 |
| 14 | 12P-77-03000 | Hose ass’y | 1 |
| 15 | 12P-77-06000 | Hose ass’y | 1 |
| 16 | 12P-77-14000 | Трубка | 1 |
| 17 | 12P-77D-01000 | Трубка | 1 |
| 18 | 12P-77-21000 | Трубка | 1 |
| 19 | 12P-77-16000 | Трубка | 1 |
| 20 | 12P-77-20000 | Трубка | 1 |
| 21 | 12P-77D-02000 | Трубка | 1 |
| 22 | 12P-77-00004 | Болт | 4 |
| 23 | 12P-77-00002 | Шайба | 10 |
| 24 | 12P-77-00003 | Plug | 4 |
| 25 | 12P-77-00007 | Clip | 6 |
| 26 | 01010-50810 | Болт M8*10 | 6 |
| 27 | 07260-20990 | Hose | 1 |
| 28 | 12P-77-18000 | Трубка | 2 |
| 29 | 12P-77-02000 | Joint | 4 |
| 30 | 07000-72018 | О-кольцо | 1 |
| 31 | 12P-77-05000 | Joint | 1 |
| 32 | GB70-1985 | Болт M6X60 | 2 |
| 33 | 12P-77-00012 | Болт | 1 |
| 34 | 12P-77-22000 | Jjoint | 1 |
| 35 | 01010-51050 | Болт M10*50 | 2 |
| 36 | 07281-00197 | Clamp | 2 |
| 37 | 12P-77-00011 | Pedestal | 1 |
| 38 | 12P-77-00010 | Joint | 1 |
| 39 | JB982-12 | Шайба 12 | 4 |
| 40 | 12P-77-17000 | Joint | 2 |
| 41 | 12P-77-10000 | Joint | 1 |
| 42 | 12P-77-13000 | Joint | 1 |
| 43 | 12P-77-19000 | Joint | 2 |

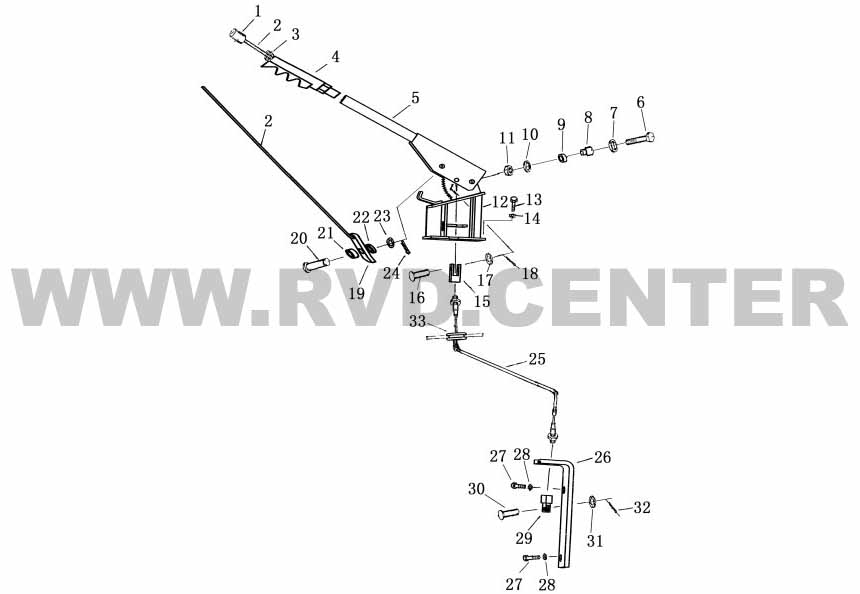

16. Стояночный тормоз
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-17-00001 | knob | 1 |
| 2 | 12P-17-00003 | rod | 1 |
| 3 | 12P-17-00002 | spring | 1 |
| 4 | 12P-17-01000 | handle | 1 |
| 5 | 12P-17-02000 | handle | 1 |
| 6 | 01010-51260 | Болт M12*60 | 1 |
| 7 | 01643-31232 | Шайба 12 | 1 |
| 8 | 12P-17-00006 | Втулка | 1 |
| 9 | 12P-17-00005 | Втулка | 1 |
| 10 | 01643-31232 | Шайба 12 | 1 |
| 11 | 01580-01210 | Гайка M12 | 1 |
| 12 | 12P-17-03000 | bracket | 1 |
| 13 | 01010-51030 | Болт M10*30 | 4 |
| 14 | 01643-31032 | Шайба 10 | 4 |
| 15 | 12P-17-00011 | yoke | 1 |
| 16 | 04205-01020 | pin | 1 |
| 17 | 01641-21016 | Шайба | 1 |
| 18 | 04050-03018 | pin, cotter | 1 |
| 19 | 12P-17-00004 | pawl | 1 |
| 20 | 04205-01248 | pin | 1 |
| 21 | 12P-17-00007 | Втулка | 1 |
| 22 | 12P-17-00008 | Втулка | 1 |
| 23 | 01641-21232 | Шайба 12 | 1 |
| 24 | 04050-03020 | pin, cotter | 1 |
| 25 | 12P-17-04000 | soft shaft | 1 |
| 26 | 12P-17-06000 | plate | 1 |
| 27 | 01010-51225 | Болт M12*25 | 2 |
| 28 | 01643-31232 | Шайба 12 | 2 |
| 29 | 12P-17-00010 | yoke | 1 |
| 30 | 04205-01240 | pin | 1 |
| 31 | 01641-21232 | Шайба 12 | 1 |
| 32 | 04050-03020 | pin, cotter | 1 |
| 33 | 12P-17-00009 | ring pipe | 1 |

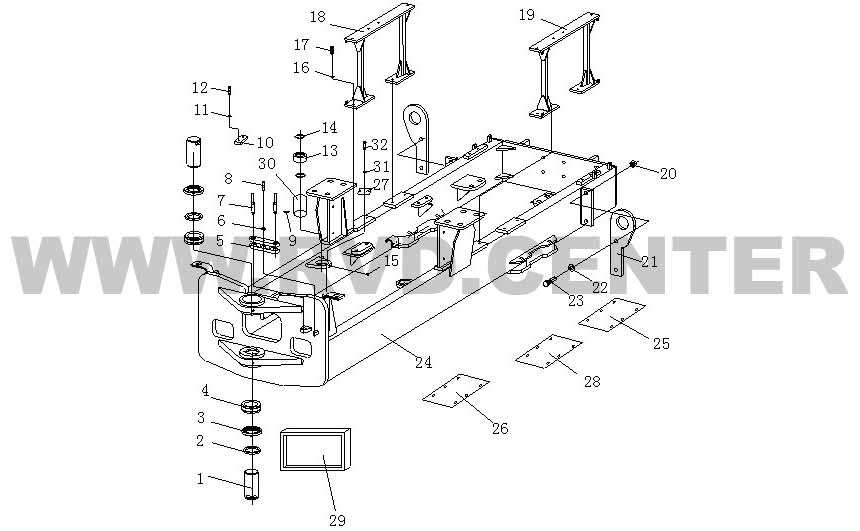

17. Основная рама
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-30-00003 | Pin | 2 |
| 2 | 12P-30-00004 | Шайба, spring | 2 |
| 3 | 12P-30-00002 | Крышка | 2 |
| 4 | GB304.5-81 | End, bearing GE90ES | 2 |
| 5 | 12P-30-05000 | Plate | 1 |
| 6 | 01643-31032 | Шайба | 13 |
| 7 | 12P-30-04000 | Pin | 2 |
| 8 | 01010-31060 | Болт M10*60 | 1 |
| 9 | 04050-15050 | Pin cotter | 2 |
| 10 | 04082-00616 | Bearing, guard | 2 |
| 11 | 01643-31645 | Шайба 16 | 4 |
| 12 | 01010-31640 | Болт M16*40 | 4 |
| 13 | GB304.5-81 | End, bearing GE40ES | 2 |
| 14 | 04065-06220 | Ring stopper | 4 |
| 15 | 07021-01090 | Fitting, grease | 4 |
| 16 | 01643-31445 | Шайба 14 | 6 |
| 17 | 01010-51445 | Болт M14*45 | 6 |
| 18 | 12P-30-02000 | Support cylinder, r.h | 1 |
| 19 | 12P-30-03000 | Support cylinder, l.h | 1 |
| 20 | 01580-02419 | Гайка M24 | 4 |
| 21 | 12P-30-00001 | Ring | 2 |
| 22 | 01643-32460 | Easher 24 | 4 |
| 23 | 01011-52400 | Болт M24*100 | 4 |
| 24 | 13P-30-01000 | Main frame | 1 |
| 25 | 12P-30-00006 | Plate | 2 |
| 26 | 12P-30-00005 | Plate | 1 |
| 27 | 01010-51025 | Болт | 12 |
| 28 | 12P-30-00007 | Plate | 1 |
| 29 | 12P-30-00008 | Ring | 1 |
| 30 | 12P-30-00009 | Shaft | 2 |
| 31 | 01643-31232 | Шайба 12 | 20 |
| 32 | 01010-51225 | Болт M12*25 | 20 |

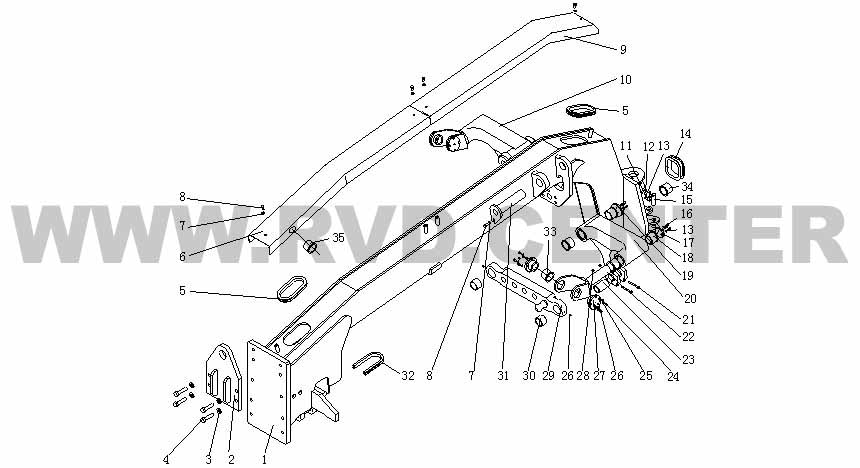

18. Передняя рама
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-31-01000 | front frame | 1 |
| 2 | 12P-31-03000 | bracket | 1 |
| 3 | 01643-32780 | Шайба 27 | 4 |
| 4 | 01011-52720 | Болт M27*120 | 4 |
| 5 | 12P-31-00012 | Трубка | 2 |
| 6 | 12P-31-00004 | Крышка(front) | 1 |
| 7 | 01643-31645 | Шайба 16 | 6 |
| 8 | 01010-51630 | БолтБолт M16*30 | 6 |
| 9 | 12P-31-00003 | Крышка(rear) | 1 |
| 10 | 12P-31-00002 | pendulum bracket, R.H | 1 |
| 11 | 04082-00209 | plate | 2 |
| 12 | 01010-51225 | Болт M12*25 | 4 |
| 13 | 01643-31232 | Шайба 12 | 26 |
| 14 | 12P-31-00013 | Трубка | 1 |
| 15 | 12P-31-00016 | shaft | 2 |
| 16 | 01010-51245 | Болт M12*45 | 14 |
| 17 | 12P-31-00010 | Крышка | 2 |
| 18 | 12P-31-00006 | sheath | 8 |
| 19 | 12P-31-00007 | Крышка | 2 |
| 20 | 12P-31-00001 | pendulum bracket, L.H | 1 |
| 21 | 01011-81225 | Болт M12*125 | 4 |
| 22 | 12P-31-02000 | yoke | 2 |
| 23 | 12P-31-00009 | Втулка | 2 |
| 24 | 01010-51025 | Болт M10*25 | 16 |
| 25 | 01643-31030 | Шайба 10 | 16 |
| 26 | 07020-01021 | fitting grease M10*1 | 10 |
| 27 | 12P-31-00005 | pedestal | 4 |
| 28 | 01580-11210 | Гайка M12 | 4 |
| 29 | 12P-31-05000 | trans beam | 1 |
| 30 | 12P-31-00008 | Втулка | 2 |
| 31 | 12P-31-04000 | shaft | 2 |
| 32 | 12P-31-00011 | Втулка | 1 |
| 33 | 12P-31-00014 | sheath | 4 |
| 34 | 12P-31-00015 | sheath | 5 |
| 35 | 08037-02512 | Втулка | 2 |
19. Балансирная тележка
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-45-10000 | tire | 4 |
| 2 | 12P-45-11000 | hub | 4 |
| 3 | 12P-45-12000 | link | 4 |
| 4 | 12P-45-00011 | two-line link wheel | 2 |
| 5 | GB5782-86 | Болт M16X35-12.9 | 36 |
| 6 | 01252-70816 | Винт M8X16 | 36 |
| 7 | 01641-20812 | Шайба 8 | 36 |
| 8 | 12P-45-00019 | Крышка | 2 |
| 9 | 12P-45-00020 | gasket | 2 |
| 10 | 07040-11612 | plug | 4 |
| 11 | 07002-11623 | О-кольцо | 4 |
| 12 | 07000-15125 | О-кольцо | 4 |
| 13 | 12P-45-00016 | Крышка | 4 |
| 14 | 07030-03034 | gas Гайка | 2 |
| 15 | GB297-94 | bearing 3007713 | 4 |
| 16 | 12P-45-00015 | link wheel | 4 |
| 17 | 01643-31232 | Шайба 12 | 160 |
| 18 | 01252-71235 | Винт M12X35 | 16 |
| 19 | 07002-12434 | О-кольцо | 2 |
| 20 | 07044-12412- | plug | 2 |
| 21 | 07000-15250 | О-кольцо | 2 |
| 22 | 07043-70211 | plug | 2 |
| 23 | 01320-30810 | Винт M8X10 | 6 |
| 24 | 12P-45-00025 | Втулка | 2 |
| 25 | 01010-51225 | Болт M12X25 | 8 |
| 26 | 12P-45-09000 | break pump | 4 |
| 27 | 12P-45-08000 | spring | 4 |
| 28 | 01580-11411 | Гайка M14 | 8 |
| 29 | 01603-01424 | spring Шайба 14 | 8 |
| 30 | 12P-45-00024 | eccentric plate | 8 |
| 31 | 12P-45-00023 | Болт | 8 |
| 32 | 01252-71640 | Винт M16X40 | 16 |
| 33 | 04064-03015 | ring, stopper 30 | 8 |
| 34 | 12P-45-00018 | pin shaft | 8 |
| 35 | 12P-45-06000 | spacer | 16 |
| 36 | 12P-45-07000 | brake hoof | 8 |
| 37 | 12P-45-00017 | Винт | 8 |
| 38 | 12P-45-03000 | brake plate | 4 |
| 39 | 01641-21016 | Шайба 10 | 8 |
| 40 | 12P-45-00001 | brake drum | 4 |
| 41 | 12P-45-00014 | Шайба | 4 |
| 42 | 01590-15254 | Гайка | 4 |
| 43 | 12P-45-00013 | Крышка | 4 |
| 44 | 12P-45-00004 | hub Гайка | 40 |
| 45 | 12P-45-00003 | spring gasket | 40 |
| 46 | 12P-45-00002 | hub Болт | 40 |
| 47 | 12P-45-00005 | Крышка | 4 |
| 48 | 01010-51225 | Болт M12X35 | 46 |
| 49 | 01010-50825 | Болт M8X25 | 48 |
| 50 | 01643-30823 | Шайба 8 | 64 |
| 51 | 01252-71650 | Винт M16X50 | 68 |
| 52 | 12P-45-00007 | Шайба | 68 |
| 53 | 12P-45-00006 | shaft ,joint plate | 4 |
| 54 | 07000-15405 | О-кольцо | 4 |
| 55 | 07011-50090 | seal | 4 |
| 56 | GB297-94 | Подшипник 32018 | 4 |
| 57 | 12P-45-00012 | shim adjusting | 10 |
| 58 | GB1096-79 | key A22X14X80 | 4 |
| 59 | 04050-18090 | pin 8X90 | 4 |
| 60 | 12P-45-01000 | shaft | 2 |
| 61 | 12P-45-00021 | Крышка | 4 |
| 62 | 12P-45-00022 | gasket | 4 |
| 63 | 01010-50816 | Болт M8X16 | 16 |
| 64 | 04065-04010 | ring, snap | 2 |
| 65 | 07035-04010 | oil pointer | 2 |
| 66 | GB288-81 | Подшипник 53617 | 4 |
| 67 | 12P-45-00010 | Крышка | 2 |
| 68 | 01014-51240 | Болт M12X40 | 12 |
| 69 | 04059-01625 | ironwire φ1.6X250 | 6 |
| 70 | 12P-45-00008 | Крышка | 2 |
| 71 | 12P-45-00009 | Крышка | 2 |
| 72 | 01642-21216 | Шайба 12 | 16 |
| 73 | 01010-51240 | Болт M12X40 | 6 |
| 74 | 12P-45-05000 | ladder | 2 |
| 75 | 12P-45-04000 | shaft | 2 |
| 76 | 12P-45-02000 | equalizer case | 2 |

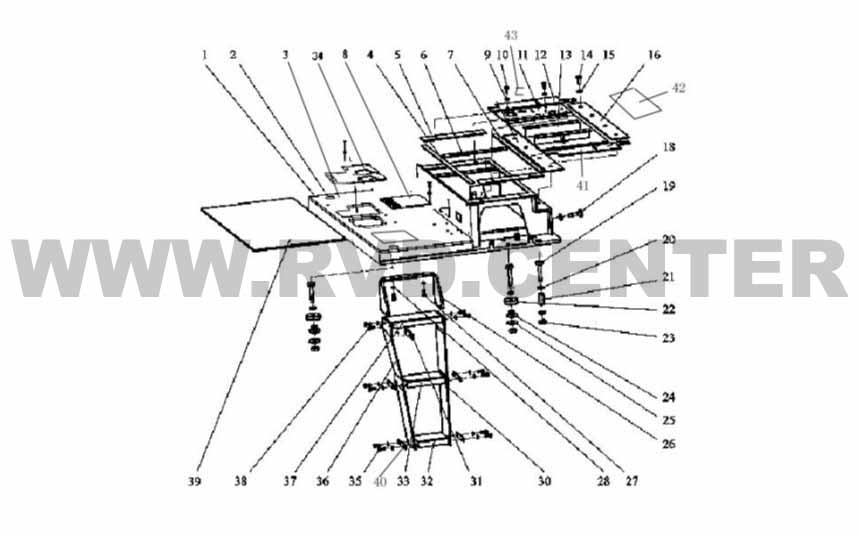

20. Пол кабины
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-51-00004 | Sealing tape 1180*20*3 | 1 |
| 2 | 12P-51-00005 | Sealing tape 595*30-3 | 2 |
| 3 | 12P-51-01000 | Floor rack | 1 |
| 4 | 12P-51-00006 | Sealing tape 1120*20*5 | 1 |
| 5 | 12P-51-00007 | Sealing tape | 2 |
| 6 | 12P-51-00011 | Sealing tape | 1 |
| 7 | 12P-51-00008 | Sealing tape 1090*30*5 | 1 |
| 8 | 12P-51-00019 | Plate | 1 |
| 9 | 01643-31032 | Шайба 10 | 40 |
| 10 | 01010-51025 | Болт M10×25 | 16 |
| 11 | 12P-51-03000 | Крышка Plate | 1 |
| 12 | 12P-51-00010 | Крышка Plate | 1 |
| 13 | 12P-51-02000 | Крышка Plate | 1 |
| 14 | 01010-51645 | Болт M16×45 | 6 |
| 15 | 01643-31645 | Шайба 16 | 6 |
| 16 | 12P-51-00009 | Крышка Plate | 1 |
| 18 | 01010-52060 | Болт M20×60 | 2 |
| 19 | 01011-52020 | Болт M20×120 | 10 |
| 20 | 01643-32060 | Шайба 20 | 16 |
| 21 | 12P-51-00012 | Втулка | 4 |
| 22 | 12P-51-00003 | Rubber Шайба | 6 |
| 23 | 01580-12016 | Гайка M20 | 10 |
| 24 | 12P-51-00002 | Rubber Шайба | 6 |
| 25 | 12P-51-00001 | Шайба | 6 |
| 26 | 12P-51-00013 | Curve plank | 2 |
| 27 | 01010-51230 | Болт M12×30 | 4 |
| 28 | 01643-31232 | Шайба 12 | 4 |
| 30 | 12P-51-00016 | Plate | 8 |
| 31 | 12P-51-00014 | Plate | 4 |
| 32 | 12P-51-06000 | Seat | 2 |
| 33 | 12P-51-05000 | Seat | 2 |
| 34 | 12P-51-00020 | Plate | 1 |
| 35 | 01010-51030 | Болт M10×30 | 16 |
| 36 | 12P-51-00015 | Plate | 4 |
| 37 | 12P-51-04000 | Seat | 2 |
| 38 | 01010-51045 | Болт M10×45 | 8 |
| 39 | 12P-51-07000 | Skidproof Plank | 1 |
| 40 | 12P-51-00017 | Plate | 4 |
| 41 | 12P-51-00018 | Plate | 1 |
| 42 | 12P-52-08000 | Plate | 1 |
| 43 | 12P-51-00021 | plate | 1 |

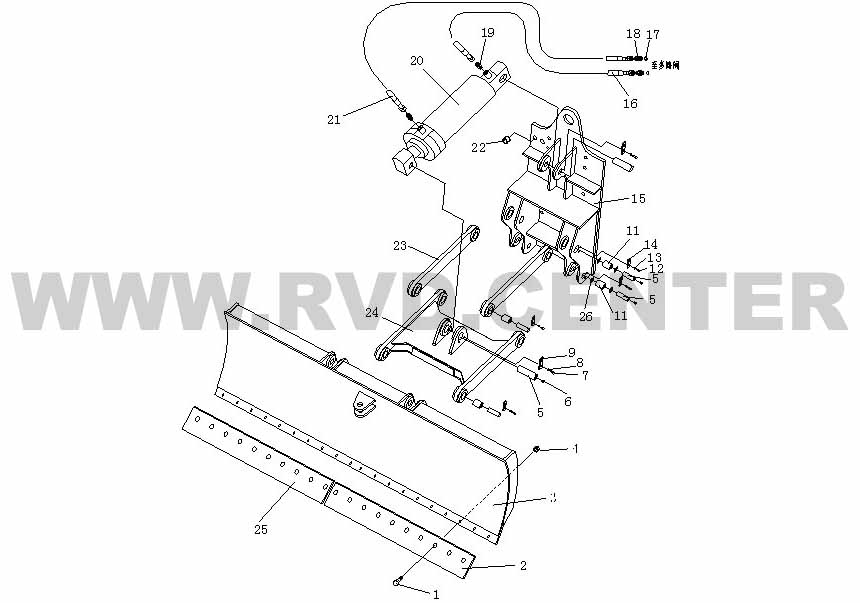

21. Рабочее оборудование
| № | Каталожный номер | Описание | Количество |
| 1 | 01010-51675 | Болт M16*75 | 8 |
| 2 | 01643-31645 | Шайба 16 | 8 |
| 3 | 12P-80-00018 | pedestal, R.H | 1 |
| 4 | 07020-01021 | fitting grease | 8 |
| 5 | 01253-71410 | Винт M14*110 | 2 |
| 6 | 01643-31445 | Шайба 14 | 4 |
| 7 | 01580-01411 | Гайка 14 | 2 |
| 8 | 04020-01224 | pin | 2 |
| 9 | 12P-80-00001 | pedestal, L.H | 1 |
| 10 | 01641-31626 | Шайба 16 | 8 |
| 11 | 01010-51680 | Болт 16*80 | 8 |
| 12 | 12P-80-01000 | head, ball | 1 |
| 13 | 12P-80-00022 | hose | 1 |
| 14 | 12P-80-07000 | support, R.H | 1 |

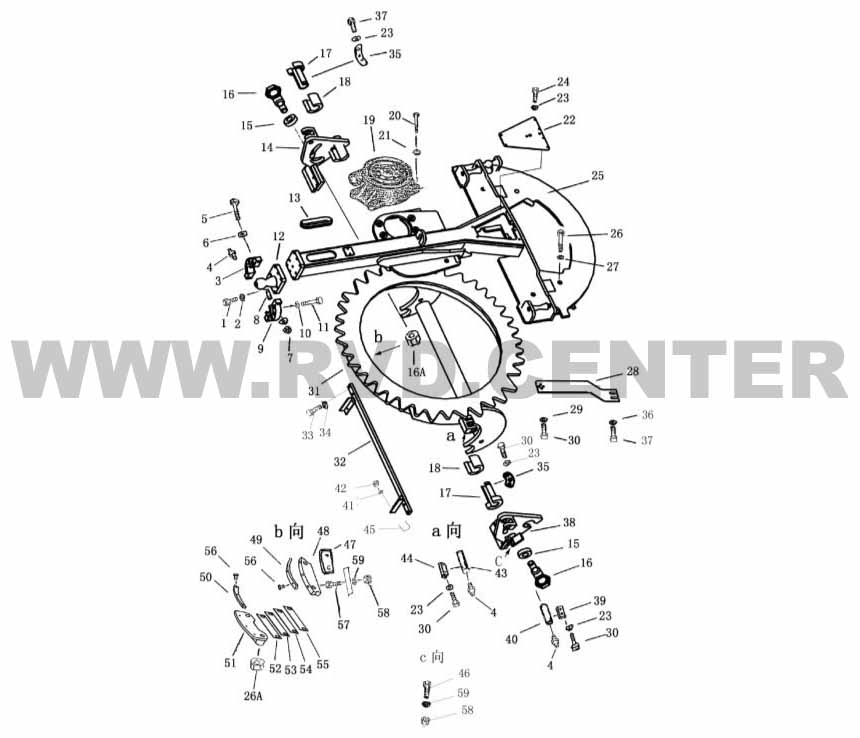

| 15 | 12P-80-00019 | Шайба | 2 |
| 16 | 12P-80-00021 | Болт | 2 |
| 16A | 01580-32016 | Гайка 20 | 2 |
| 17 | 12P-80-00007 | Втулка | 2 |
| 18 | 12P-80-00006 | Втулка | 2 |
| 19 | 12P-80-04000 | turbine case | 1 |
| 20 | 01252-72465 | Винт M24*65 | 4 |
| 21 | 01602-22472 | Шайба 24 | 4 |
| 22 | 12P-80-09000 | Крышка | 1 |
| 23 | 01643-31032 | Шайба 10 | 20 |
| 24 | 01010-51025 | Болт M10*25 | 6 |
| 25 | 12P-80-02000 | drawbar | 1 |
| 26 | GB5785-86 | Болт | 6 |
| 27 | GB848-85 | Шайба 30 | 12 |
| 26A | 01580-03024 | Гайка M30*3 | 6 |
| 28 | 12P-80-00020 | plate | 1 |
| 29 | 01642-31016 | Шайба 10 | 2 |
| 30 | 01010-51020 | Болт M10*20 | 16 |
| 31 | 12P-80-03000 | turn-round ring | 1 |
| 32 | 12P-80-08000 | support plate | 1 |
| 33 | 01010-51655 | Болт M16*55 | 4 |
| 34 | 01643-31645 | Шайба 16 | 4 |
| 35 | 12P-80-00017 | plate, lock | 2 |
| 36 | 01580-11008 | Гайка | 2 |
| 37 | 01010-51080 | Болт | 2 |
| 38 | 12P-80-06000 | support, R.H | 1 |
| 39 | 04082-00106 | plate | 2 |
| 40 | 12P-80-00004 | shaft | 2 |
| 41 | 01643-30823 | Шайба | 4 |
| 42 | 01598-10809 | Гайка | 4 |
| 43 | 12P-80-00003 | shaft | 2 |
| 44 | 04082-00106 | stopper ring | 2 |
| 45 | 12P-80-00023 | nip | 2 |
| 46 | 01011-32430 | Болт M24*130 | 2 |
| 47 | 12P-80-00002 | plate | 1 |
| 12P-80-00013 | plate | 2 | |
| 48 | 12P-80-00016 | guide plate | 3 |
| 49 | 12P-80-00015 | plate | 3 |
| 50 | 12P-80-00014 | plate | 3 |
| 51 | 12P-80-00008 | pedestal | 3 |
| 52 | 12P-80-00009 | shim | 6 |
| 53 | 12P-80-00010 | shim | 3 |
| 54 | 12P-80-00011 | shim | 3 |
| 55 | 12P-80-00012 | shim | 3 |
| 56 | 01252-30816 | Винт | 18 |
| 57 | 01011-32420 | Болт | 6 |
| 58 | 01580-02419 | Гайка | 8 |
| 59 | 01643-32460 | Шайба | 12 |
22. Червячная передача
| № | Каталожный номер | Описание | Количество |
| 1 | 01010-50816 | Болт M8*16 | 8 |
| 2 | 01642-30810 | Шайба 8 | 8 |
| 3 | 12P-80-04007 | Крышка | 1 |
| 4 | 01252-51230 | Винт M12*30 | 6 |
| 5 | 01010-51025 | Болт M10*25 | 12 |
| 6 | 01642-31016 | Шайба 10 | 12 |
| 7 | 12P-80-04014 | gearbox housing | 1 |
| 8 | 12P-80-04016 | shim | 1 |
| 9 | 12P-80-04018 | shim | 1 |
| 10 | 12P-80-04015 | plug | 1 |
| 11 | 12P-80-04017 | glass | 1 |
| 12 | 04000-10860 | key | 1 |
| 13 | 12P-80-04004 | shaft | 1 |
| 14 | 01252-51070 | Винт M10*70 | 8 |
| 15 | 12P-80-04006 | bearing pedestal | 1 |
| 16 | 12P-80-04002 | Втулка | 2 |
| 17 | GB301-84 | Подшипник 8209 | 2 |
| 18 | 12P-80-04003 | disc | 2 |
| 19 | 12P-80-04005 | rod | 1 |
| 20 | 12P-80-04013 | wheel | 1 |
| 21 | GB297-84 | Подшипник 7515E | 1 |
| 22 | GB9877.1-88(FB) | seal oil | 1 |
| 23 | GB71-85 | Винт M10*25 | 1 |
| 24 | 07000-52055 | О-кольцо | 1 |
| 25 | 12P-80-04001 | bearing pedestal | 1 |
| 26 | 07002-51423 | О-кольцо | 2 |
| 27 | 07040-11409 | plug | 2 |
| 28 | 12P-80-04011 | worm | 1 |
| 29 | 12P-80-04009 | Крышка | 1 |
| 30 | 12P-80-04012 | adjusting shim | 2 |
| 31 | GB297-84 | Подшипник 2007115E | 1 |
| 32 | 12P-80-04010 | bearing Крышка | 1 |
| 33 | 12P-80-04008 | shim | 1 |
| 34 | 01602-51030 | Шайба | 8 |
| 35 | 07000-52070 | О-кольцо | 1 |

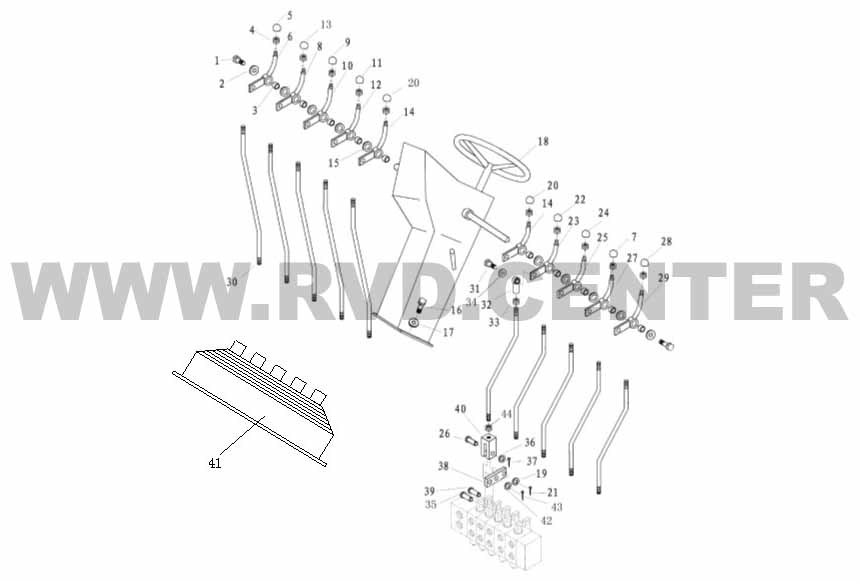

23. Управление рабочим оборудованием
| № | Каталожный номер | Описание | Количество |
| 1, 2, 18 | 12P-71-10000 | console ass’y | 1 |
| 3 | 06124-02020 | bearing | 10 |
| 4 | 01583-51006 | Гайка | 10 |
| 5 | 12P-71-16000 | handle | 1 |
| 6 | 12P-71-09000 | lever | 1 |
| 7 | 12P-71-19000 | handle | 2 |
| 8 | 12P-71-08000 | lever | 1 |
| 9 | 12P-71-18000 | handle | 1 |
| 10 | 12P-71-07000 | lever | 1 |
| 11 | 12P-71-14000 | handle | 1 |
| 12 | 12P-71-06000 | lever | 1 |
| 13 | 12P-71-15000 | handle | 1 |
| 14 | 12P-71-05000 | lever | 2 |
| 15 | 12P-71-00001 | Шайба | 8 |
| 16 | 01010-51035 | Болт M10*35 | 4 |
| 17 | 01643-31032 | Шайба 10 | 4 |
| 19 | 01641-30608 | Шайба 6 | 20 |
| 20 | 12P-71-12000 | handle | 1 |
| 21 | 04050-11210 | pin | 20 |
| 22 | 12P-71-17000 | handle | 1 |
| 23 | 12P-71-04000 | lever | 1 |
| 24 | 12P-71-13000 | handle | 1 |
| 25 | 12P-71-03000 | lever | 1 |
| 26 | 04205-30824 | pin shaft | 1 |
| 27 | 12P-71-02000 | lever | 1 |
| 28 | 12P-71-11000 | handle | 1 |
| 29 | 12P-71-01000 | lever | 1 |
| 30 | 12P-71-20000 | rod | 10 |
| 31 | 01012-51035 | Болт | 10 |
| 32 | 04250-81056 | bearing | 10 |
| 33 | 01580-11008 | Гайка | 10 |
| 34 | 01641-21016 | Шайба | 20 |
| 35 | 04205-30424 | pin shaft | 10 |
| 36 | 01641-30812 | Шайба | 10 |
| 37 | 04050-12012 | pin | 10 |
| 38 | 12P-71-00002 | plate | 10 |
| 39 | 04205-30624 | pin shaft | 10 |
| 40 | 04210-20832 | yoke | 10 |
| 41 | 12P-71-00003 | jacket | 2 |
| 42 | 01641-30405 | Шайба | 10 |
| 43 | 04050-11612 | pin | 10 |
| 44 | 01580-10806 | Гайка | 10 |

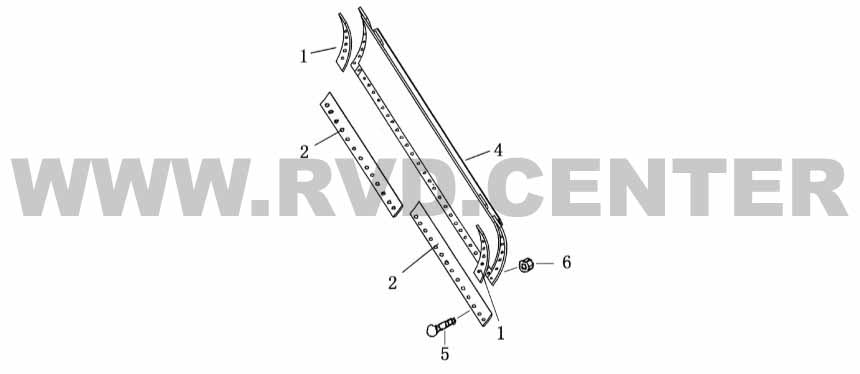

24. Отвал
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-80-05001 | side cutting edge | 1 |
| 2 | 13P-80-01001 | cutting edge | 2 |
| 4 | 13P-80-01100 | body， blade | 1 |
| 5 | 12P-80-05002 | Болт | 38 |
| 6 | 16L-80-00001 | Гайка | 38 |

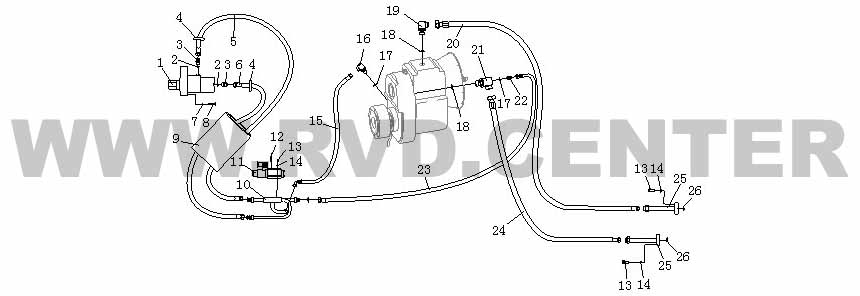

25. Гидравлическая схема трансмиссии
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-75-10000 | Oil jar | 1 |
| 2 | 07002-11423 | О-кольцо | 2 |
| 3 | 15P-75-00002 | Tie-in | 2 |
| 4 | 12P-75-00010 | Sheath | 2 |
| 5 | 12P-75D-01000 | Hose | 1 |
| 6 | 12P-75D-02000 | Hose | 1 |
| 7 | 01643-32460 | Шайба 24 | 5 |
| 8 | 01010-52470 | Болт M24×70 | 5 |
| 9 | 12P-75D-00001 | Sheath | 1 |
| 10 | 12P-75D-10000 | Clique seat | 1 |
| 11 | 12P-75-11000 | Clique | 1 |
| 12 | 12P-75-00002 | Болт | 2 |
| 13 | 01010-51035 | Болт M10×35 | 7 |
| 14 | 01643-31032 | Шайба 10 | 7 |
| 15 | 12P-75D-03000 | Hose | 1 |
| 16 | 12P-75D-09000 | Tie-in | 1 |
| 17 | 07002-11023 | О-кольцо | 4 |
| 18 | 07002-13034 | О-кольцо | 2 |
| 19 | 12P-75D-08000 | Tie-in | 1 |
| 20 | 12P-75D-06000 | Hose | 1 |
| 21 | 15P-75-06000 | Tie-in | 1 |
| 22 | 15P-75-00003 | Tie-in | 1 |
| 23 | 12P-75D-04000 | Hose | 1 |
| 24 | 12P-75D-05000 | Hose | 1 |
| 25 | 12P-75D-07000 | Tie-in | 2 |
| 26 | 07000-13028 | О-кольцо | 2 |
26. Гидравлический бак
| № | Каталожный номер | Описание | Количество |
| 1 | 01010-51025 | Болт M10x25 | 6 |
| 2 | 01643-31032 | Шайба 10 | 6 |
| 3 | 12P-60-02000 | filter | 1 |
| 4 | 12P-60D-01000 | Hydraulic tank | 1 |
| 5 | 16Y-04-00007 | adapter | 1 |
| 6 | 07700-40460 | valve | 1 |
| 7 | 01010-31230 | Болт M12x30 | 4 |
| 8 | 01643-31232 | Шайба 12 | 4 |
| 9 | 12P-60-04000 | Disc | 1 |
| 10 | 07000-12055 | О-кольцо | 1 |
| 11 | 12P-60-05000 | Element | 1 |
| 12 | 12P-60-03000 | Oil gauge | 1 |
| 13 | 07206-30812 | Болт | 2 |
| 14 | 07005-01212 | Шайба, seal | 2 |
| 15 | 07056-10045 | Net | 1 |
| 16 | 07051-20000 | Cap | 1 |
| 17 | 07280-01210 | clamp | 1 |
| 18 | 07270-21265 | Hose | 1 |
| 19 | 01643-30623 | Шайба 6 | 4 |
| 20 | 01010-50625 | Болт M6*25 | 4 |
| 21 | 07000-12095 | О-кольцо | 1 |

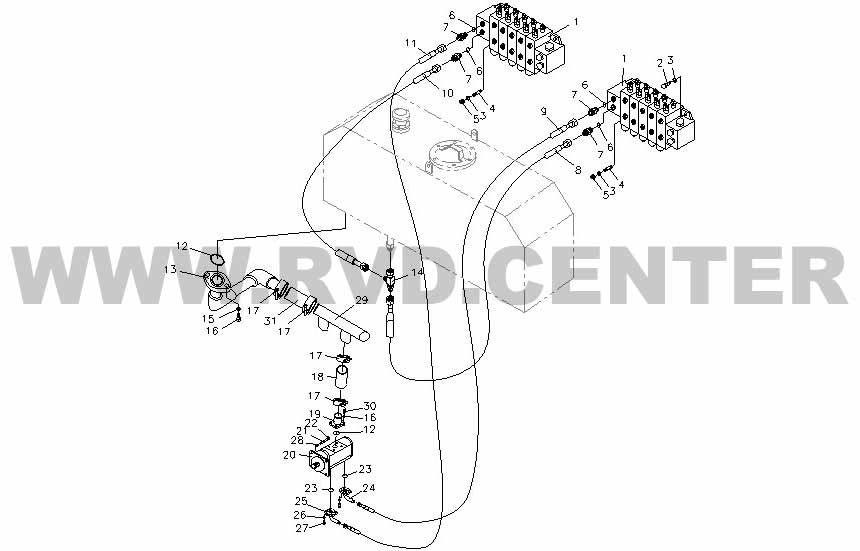

27. Гидравлическая система рабочего насоса
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-61-05000 | valve | 2 |
| 2 | 01252-51030 | Болт M10*30 | 2 |
| 3 | 01602-51030 | Шайба 10 | 8 |
| 4 | 01124-51025 | stud | 2 |
| 5 | 01580-11008 | Гайка M10 | 2 |
| 6 | 07000-12018 | О-кольцо | 4 |
| 7 | 12P-61-00001 | joint | 4 |
| 8 | 12P-61-04000 | hose | 1 |
| 9 | 12P-61-06000 | hose | 1 |
| 10 | 12P-61-03000 | hose | 1 |
| 11 | 12P-61-07000 | hose | 1 |
| 12 | 07000-13042 | О-кольцо | 2 |
| 13 | 13P-61-02000 | Трубка | 1 |
| 14 | 12P-61-09000 | joint | 1 |
| 15 | 01050-51230 | Болт M12*1.5*30 | 2 |
| 16 | 01643-31232 | Шайба 12 | 6 |
| 17 | 07281-10489 | clamp | 4 |
| 18 | 07260-24114 | hose | 1 |
| 19 | 12P-61-01000 | pedestal | 1 |
| 20 | 12P-61-08000 | pump | 1 |
| 21 | 01114-51450 | stud M14*50 | 4 |
| 22 | 01580-014110 | Гайка M14 | 4 |
| 23 | 07000-13026 | О-кольцо | 2 |
| 24 | 12P-61-10000 | oil Трубка | 1 |
| 25 | 12P-61-11000 | oil Трубка | 1 |
| 26 | 01643-31032 | Шайба | 8 |
| 27 | 01010-51035 | Болт M10*35 | 8 |
| 28 | 01643-31445 | Шайба 14 | 4 |
| 29 | 12P-61-12000 | Трубка | 1 |
| 30 | 01010-51230 | Болт M12*30 | 4 |
| 31 | 07260-24120 | hose | 1 |

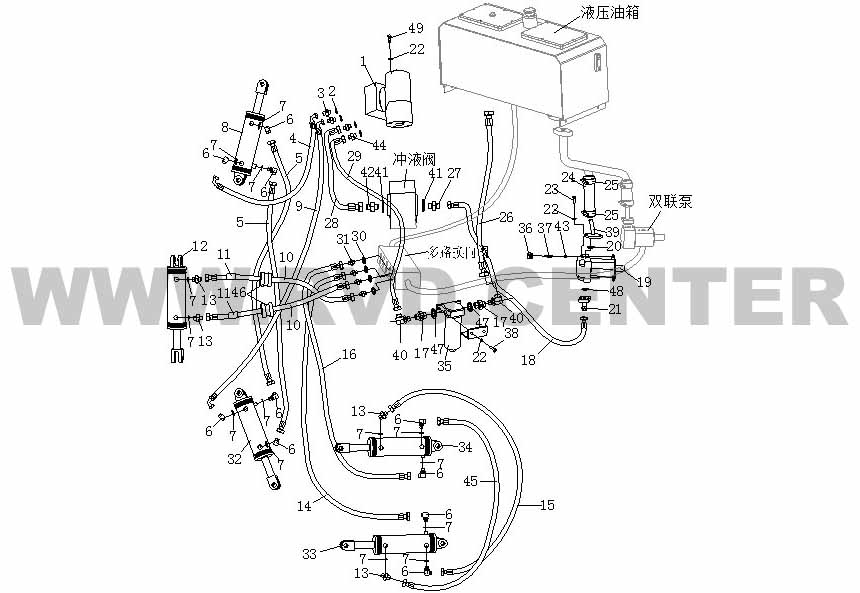

28. Гидравлическая система гидроцилиндров отвала
| № | Каталожный номер | Описание | Количество |
| 1 | 07002-12034 | О-кольцо | 10 |
| 2 | 12P-62-00003 | Adaptor | 6 |
| 3 | 12P-62-05000 | Hose | 1 |
| 4 | 12P-62-00004 | Adaptor | 2 |
| 5 | 12P-62-00005 | Adaptor | 2 |
| 6 | 01583-12414 | Гайка M24*1.5 | 4 |
| 7 | 12P-62-00100 | Hose | 1 |
| 8 | 12P-62-00900 | Hose | 1 |
| 9 | 12P-62-20000 | CYLINDER | 1 |
| 10 | 01010-51275 | Болт M12*75 | 2 |
| 11 | 01643-31232 | Шайба 12 | 2 |
| 12 | 12P-62-02000 | Hose | 1 |
| 13 | 12P-62-00700 | Hydraulic lock | 3 |
| 14 | 12P-62-00500 | Hose | 1 |
| 15 | 12P-62-00400 | Hose | 1 |
| 16 | 12P-62-00600 | Adaptor | 4 |
| 17 | 12P-62-10000 | CYLINDER | 1 |
| 18 | 12P-62-00001 | Plug | 4 |
| 19 | 12P-62-00002 | Adaptor | 6 |
| 20 | 07000-12018 | О-кольцо | 10 |
| 21 | 12P-62-01000 | Hose | 1 |
| 22 | 12P-62-00200 | Hose | 1 |
| 23 | 12P-62-04000 | Hose | 1 |
| 24 | 12P-62-03000 | Hose | 1 |
| 25 | 12P-62-30000 | CYLINDER | 1 |
| 26 | 12P-62-00800 | Hose | 1 |
| 27 | 12P-62-06000 | Hose | 1 |

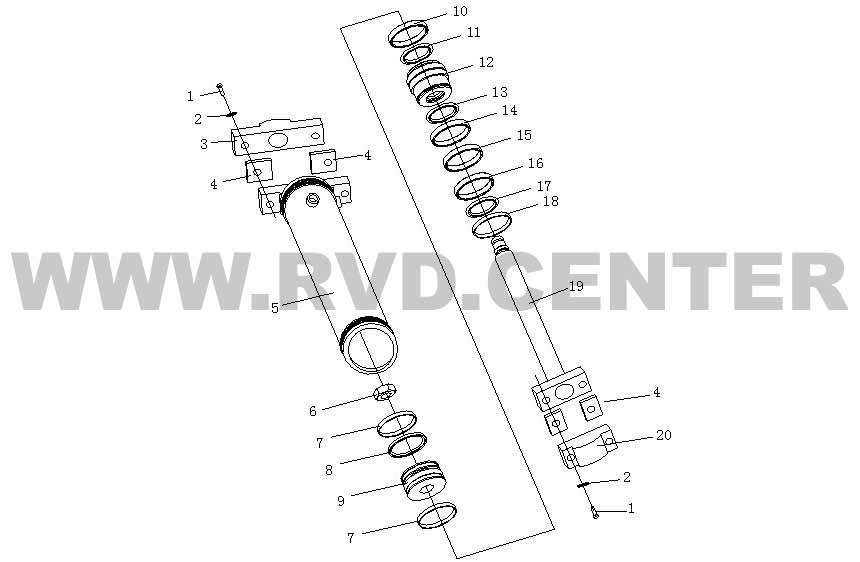

29. Гидроцилиндр наклона
| № | Каталожный номер | Описание | Количество |
| 1 | 01643-32780 | Шайба 27 | 4 |
| 2 | 01010-52795 | Болт M27*95 | 4 |
| 3 | 12P-62-10001 | Крышка | 1 |
| 4 | 12P-62-10002 | Adjusting Шайбаs | 8 |
| 5 | 12P-62-10200 | Cylinder | 1 |
| 6 | 12P-62-10003 | Гайка | 1 |
| 7 | 12P-62-10004 | Retaining ring | 2 |
| 8 | 12P-62-10100 | Compound seal Шайба | 1 |
| 9 | 12P-62-10009 | Piston | 1 |
| 10 | 07001-03025 | Safeguard circle | 1 |
| 11 | 07000-13025 | О-кольцо | 1 |
| 12 | 12P-62-10005 | Cylinder head | 1 |
| 13 | 07000-12075 | О-кольцо | 1 |
| 14 | 07001-02075 | Safeguard circle | 1 |
| 15 | 12P-62-10006 | Retaining ring | 1 |
| 16 | 12P-62-10300 | Compound seal Шайба | 1 |
| 17 | 07000-12080 | О-кольцо | 1 |
| 18 | 12P-62-10007 | Seal ring | 1 |
| 19 | 12P-62-10400 | Rod | 1 |
| 20 | 12P-62-10008 | Крышка | 1 |

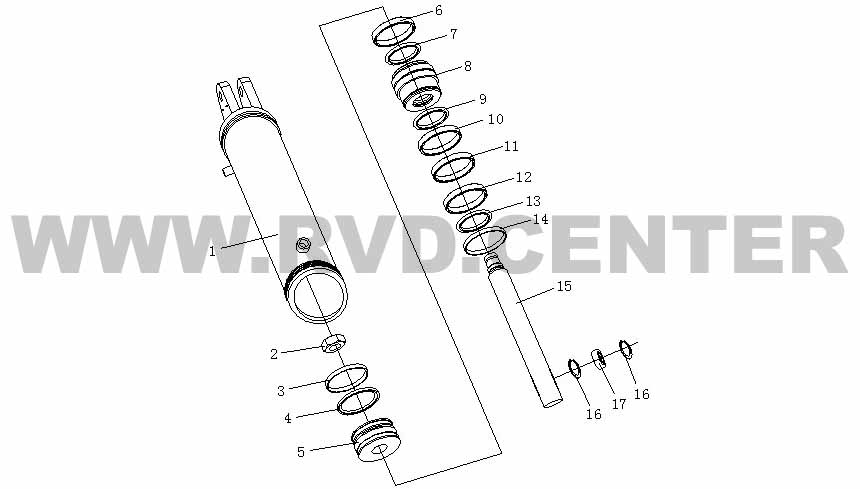

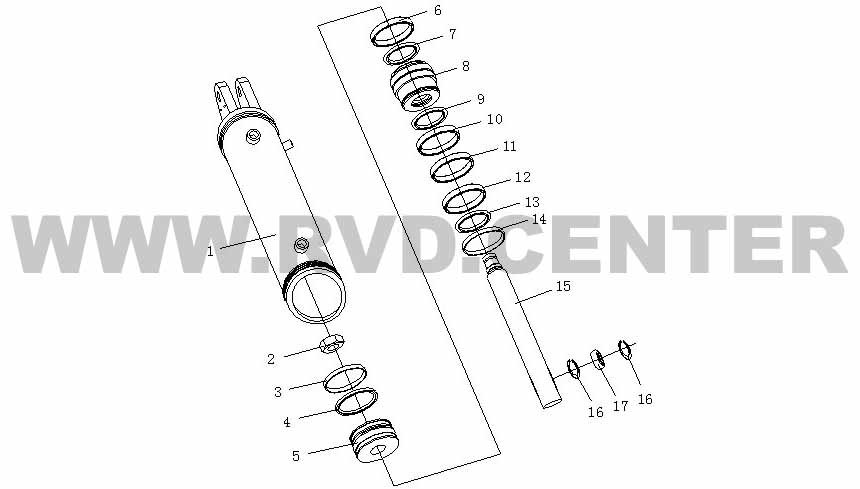

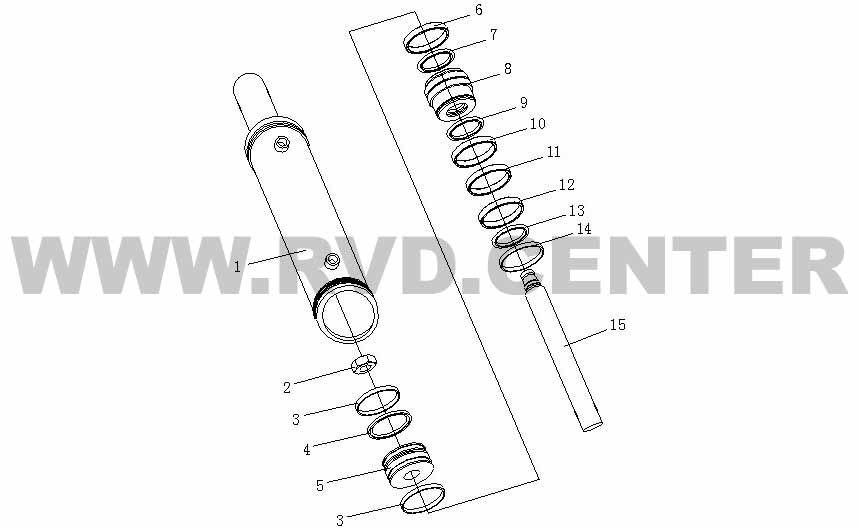

30. Гидроцилиндр отвала
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-62-20100 | Cylinder | 1 |
| 2 | 12P-62-10003 | Гайка | 1 |
| 3 | 12P-62-10004 | Retaining ring | 2 |
| 4 | 12P-62-10100 | Compound seal Шайба | 1 |
| 5 | 12P-62-10009 | Piston | 1 |
| 6 | 07001-03025 | Safeguard circle | 1 |
| 7 | 07000-13025 | О-кольцо | 1 |
| 8 | 12P-62-10005 | Cylinder head | 1 |
| 9 | 07000-12075 | О-кольцо | 1 |
| 10 | 07001-02075 | Safeguard circle | 1 |
| 11 | 12P-62-10300 | Compound seal Шайба | 1 |
| 12 | 12P-62-10006 | Retaining ring | 1 |
| 13 | 12P-62-10007 | Seal ring | 1 |
| 14 | 07000-12080 | О-кольцо | 1 |
| 15 | 12P-62-20400 | Rod | 1 |
| 16 | 12P-62-10002 | Adjusting Шайбаs | 8 |
| 17 | 12P-62-10008 | Крышка | 1 |
| 18 | 01643-32780 | Шайба 27 | 2 |
| 19 | 01010-52795 | Болт M27*95 | 2 |
| 20 | 12P-62-20200 | Hose | 1 |
| 21 | 07002-12034 | О-кольцо | 4 |
| 22 | 12P-62-00600 | Tie-in | 3 |
| 23 | 01010-51275 | Болт M12*75 | 2 |
| 24 | 01643-31232 | Шайба 12 | 2 |
| 25 | 12P-62-30100 | Hose | 1 |
| 26 | 12P-80-03100 | Clamp | 1 |
| 27 | 12P-62-20001 | Set | 2 |
| 28 | 12P-62-00003 | Tie-in | 1 |
31. Гидроцилиндр поворота
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-63-10000 | Cylinder | 1 |
| 2 | 07002-12034 | О-кольцо | 6 |
| 3 | 12P-62-00003 | Adaptor | 2 |
| 4 | 12P-63-00300 | Hose | 4 |
| 5 | 12P-62-00600 | Adaptor | 4 |
| 7 | 12P-63-00500 | Hose | 2 |
| 8 | 12P-63-20000 | Cylinder | 1 |
| 9 | 263-75-00012 | Rubber- plate | 8 |
| 10 | 12P-63-00001 | Adaptor | 2 |
| 11 | JB982-77 | Шайба 22 | 2 |
| 12 | 01010-51235 | Болт M12*35 | 2 |
| 13 | 01643-31232 | Шайба 12 | 4 |
| 14 | 12P-63-40000 | Motor | 1 |
| 15 | 07000-12080 | О-кольцо | 1 |
| 16 | 12P-63-00002 | Key set | 1 |
| 17 | 01010-51230 | Болт M12*30 | 2 |
| 18 | 12P-63-30000 | Turn adaptor | 1 |
| 19 | 12P-63-00200 | Hose | 4 |
| 20 | 12P-63-00100 | Hose | 1 |
| 21 | 12P-62-00002 | Adaptor | 6 |
| 22 | 07000-12018 | О-кольцо | 6 |
| 23 | 12P-63-00600 | Hose | 1 |
| 24 | 12P-63-50000 | Cylinder | 1 |
| 25 | 263-75-00013 | Plate | 2 |
| 26 | 01643-31032 | Шайба 10 | 4 |
| 27 | 01010-51090 | Болт M10*90 | 4 |

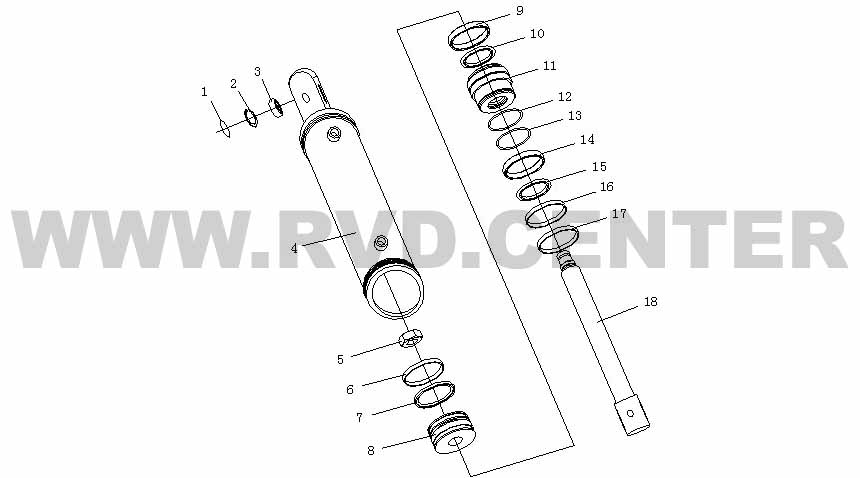

32. Дорожный цилиндр
| № | Каталожный номер | Описание | Количество |
| 1 | 07020-01021 | Grease cup M10*1 | 1 |
| 2 | GB305.5-81 | Bearing GE35ES | 1 |
| 3 | 04065-05520 | Circlip | 1 |
| 4 | 12P-63-10100 | Cylinder | 1 |
| 5 | 12P-63-10001 | Гайка | 1 |
| 6 | 12P-63-10002 | Retaining ring | 1 |
| 7 | 12P-75-10100 | Compound seal Шайба | 1 |
| 8 | 12P-63-10003 | Piston | 1 |
| 9 | 07001-02020 | Safeguard circle | 1 |
| 10 | 07000-12020 | О-кольцо | 2 |
| 11 | 12P-63-10004 | Cylinder head | 1 |
| 12 | 07000-12065 | О-кольцо | 1 |
| 13 | 07001-02065 | Safeguard circle | 1 |
| 14 | 12P-63-10005 | Retaining ring | 1 |
| 15 | 12P-63-10300 | Compound seal Шайба | 1 |
| 16 | 07000-12070 | О-кольцо | 1 |
| 17 | 12P-63-10006 | Seal ring | 1 |
| 18 | 12P-63-10200 | Rod | 1 |
33. Дорожный цилиндр
| № | Каталожный номер | Описание | Количество |
| 1 | 07020-01021 | Grease cup M10*1 | 1 |
| 2 | GB305.5-81 | Bearing GE35ES | 1 |
| 3 | 04065-05520 | Circlip | 1 |
| 4 | 12P-63-50100 | Cylinder | 1 |
| 5 | 12P-63-10001 | Гайка | 1 |
| 6 | 12P-63-10002 | Retaining ring | 1 |
| 7 | 12P-75-10100 | Compound seal Шайба | 1 |
| 8 | 12P-63-10003 | Piston | 1 |
| 9 | 07001-02020 | Safeguard circle | 1 |
| 10 | 07000-12020 | О-кольцо | 2 |
| 11 | 12P-63-10004 | Cylinder head | 1 |
| 12 | 07000-12065 | О-кольцо | 1 |
| 13 | 07001-02065 | Safeguard circle | 1 |
| 14 | 12P-63-10005 | Retaining ring | 1 |
| 15 | 12P-63-10300 | Compound seal Шайба | 1 |
| 16 | 07000-12070 | О-кольцо | 1 |
| 17 | 12P-63-10006 | Seal ring | 1 |
| 18 | 12P-63-10200 | Rod | 1 |
34. Боковой гидроцилиндр
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-63-20100 | Cylinder | 1 |
| 2 | 12P-62-10003 | Гайка | 1 |
| 3 | 12P-62-10004 | Retaining ring | 1 |
| 4 | 12P-62-10100 | Compound seal Шайба | 1 |
| 5 | 12P-62-10009 | Piston | 1 |
| 6 | 07001-03025 | Safeguard circle | 1 |
| 7 | 07000-13025 | О-кольцо | 1 |
| 8 | 12P-62-10005 | Cylinder head | 1 |
| 9 | 07000-12075 | О-кольцо | 1 |
| 10 | 07001-02075 | Safeguard circle | 1 |
| 11 | 12P-62-10006 | Retaining ring | 1 |
| 12 | 12P-62-10300 | Compound seal Шайба | 1 |
| 13 | 07000-12080 | О-кольцо | 1 |
| 14 | 12P-62-10007 | Seal ring | 1 |
| 15 | 12P-63-20001 | Rod | 1 |
35. Гидравлическая система рулевого управления
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-76-03000 | Redirector | 1 |
| 2 | JB982-77 | Шайба 20 | 4 |
| 3 | 12P-76-00001 | Adaptor | 3 |
| 4 | 12P-76-00700 | Hose | 1 |
| 5 | 12P-76-00900 | Hose | 2 |
| 6 | 12P-62-00600 | Adaptor | 10 |
| 7 | 07002-12034 | О-кольцо | 14 |
| 8 | 12P-76-06000 | CYLINDER | 1 |
| 9 | 12P-76-00800 | Hose | 1 |
| 10 | 12P-76-16000 | Hose | 1 |
| 11 | 12P-76-00600 | Hose | 1 |
| 12 | 12P-76-07000 | CYLINDER | 1 |
| 13 | 12P-62-00003 | Adaptor | 4 |
| 14 | 12P-76-00300 | Hose | 1 |
| 15 | 12P-76-00500 | Hose | 1 |
| 16 | 12P-76-00400 | Hose | 1 |
| 17 | 12P-76-00007 | Adaptor | 2 |
| 18 | 12P-76-13000 | Hose | 1 |
| 19 | 12P-76-14000 | Pump | 1 |
| 20 | 07000-12035 | О-кольцо | 1 |
| 21 | 12P-76-09000 | Hose | 1 |
| 22 | 01643-31032 | Шайба 10 | 14 |
| 23 | 01010-51030 | Болт M10*30 | 8 |
| 24 | 07260-03225 | Hose | 1 |
| 25 | 07281-10489 | Hoop | 2 |
| 26 | 12P-76-11000 | Hose | 1 |
| 27 | 12P-76-00004 | Adaptor | 1 |
| 28 | 12P-76-00200 | Hose | 1 |
| 29 | 12P-76-00100 | Hose | 1 |
| 30 | 07000-12018 | О-кольцо | 4 |
| 31 | 12P-62-00002 | Adaptor | 4 |
| 32 | 12P-76-05000 | CYLINDER | 1 |
| 33 | 12P-76-02000 | CYLINDER | 1 |
| 34 | 12P-76-04000 | CYLINDER | 1 |
| 35 | 12P-76-08000 | Filter oil | 1 |
| 36 | 01580-11411 | Гайка M14 | 4 |
| 37 | 01124-51435 | Болт | 4 |
| 38 | 01010-51016 | Болт M10*16 | 2 |
| 39 | 12P-76-12000 | Hose | 1 |
| 40 | 12P-76-10000 | Adaptor | 2 |
| 41 | JB982-77 | Шайба 18 | 2 |
| 42 | 12P-76-00003 | Adaptor | 1 |
| 43 | 01643-31445 | Шайба 14 | 4 |
| 44 | 12P-76-00005 | Adaptor | 1 |
| 45 | 12P-76-15000 | Hose | 1 |
| 46 | 12P-76-00002 | sheath | 4 |
| 47 | JB982-77 | Шайба 42 | 2 |
| 48 | 07000-13028 | О-кольцо | 1 |
| 49 | 01010-51020 | Болт M10*20 | 4 |

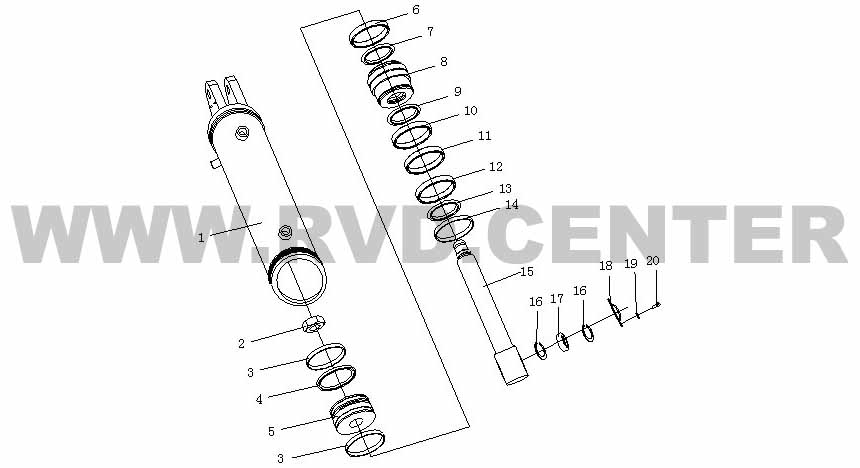

36. Рулевой гидроцилиндр левый
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-76-02100 | Cylinder | 1 |
| 2 | 12P-62-10003 | Гайка | 1 |
| 3 | 12P-62-10004 | Retaining ring | 1 |
| 4 | 12P-62-10100 | Compound seal Шайба | 1 |
| 5 | 12P-62-10009 | Piston | 1 |
| 6 | 07001-03025 | Safeguard circle | 1 |
| 7 | 07000-13025 | О-кольцо | 1 |
| 8 | 12P-62-10005 | Cylinder head | 1 |
| 9 | 07000-12075 | О-кольцо | 1 |
| 10 | 07001-02075 | Safeguard circle | 1 |
| 11 | 12P-62-10006 | Retaining ring | 2 |
| 12 | 12P-62-10300 | Compound seal Шайба | 1 |
| 13 | 07000-12080 | О-кольцо | 1 |
| 14 | 12P-62-10007 | Seal ring | 1 |
| 15 | 12P-76-02200 | Rod | 1 |
| 16 | 04065-06220 | Circlip | 2 |
| 17 | GB305.5-81 | Bearing GE40ES | 1 |

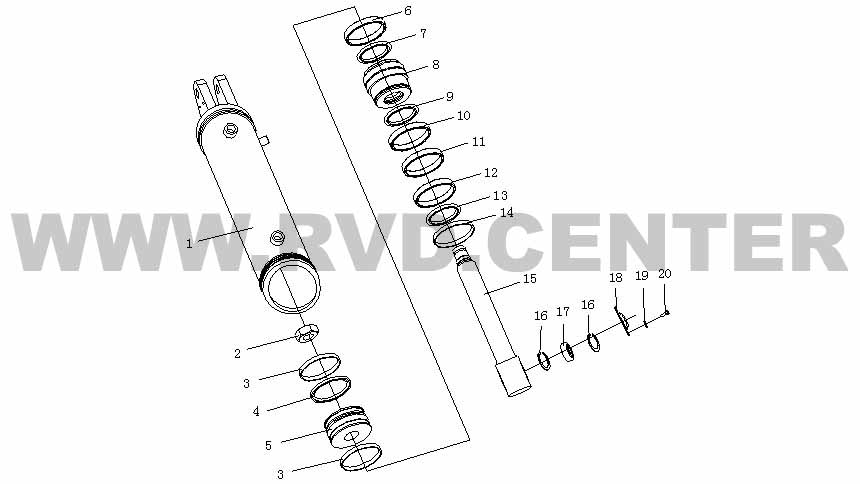

37. Рулевой гидроцилиндр правый
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-76-02100 | Cylinder | 1 |
| 2 | 12P-62-10003 | Гайка | 1 |
| 3 | 12P-62-10004 | Retaining ring | 1 |
| 4 | 12P-62-10100 | Compound seal Шайба | 1 |
| 5 | 12P-62-10009 | Piston | 1 |
| 6 | 07001-03025 | Safeguard circle | 1 |
| 7 | 07000-13025 | О-кольцо | 1 |
| 8 | 12P-62-10005 | Cylinder head | 1 |
| 9 | 07000-12075 | О-кольцо | 1 |
| 10 | 07001-02075 | Safeguard circle | 1 |
| 11 | 12P-62-10006 | Retaining ring | 2 |
| 12 | 12P-62-10300 | Compound seal Шайба | 1 |
| 13 | 07000-12080 | О-кольцо | 1 |
| 14 | 12P-62-10007 | Seal ring | 1 |
| 15 | 12P-76-02200 | Rod | 1 |
| 16 | 04065-06220 | Circlip | 2 |
| 17 | GB305.5-81 | Bearing GE40ES | 1 |
38. Поворотный гидроцилиндр правый
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-76-05100 | Cylinder | 1 |
| 2 | 12P-63-10001 | Гайка | 1 |
| 3 | 12P-75-10003 | Retaining ring | 1 |
| 4 | 12P-75-10100 | Compound seal Шайба | 1 |
| 5 | 12P-76-05001 | Piston | 1 |
| 6 | 07001-02020 | Safeguard circle | 1 |
| 7 | 07000-12020 | О-кольцо | 1 |
| 8 | 12P-63-10004 | Cylinder head | 1 |
| 9 | 07000-12065 | О-кольцо | 1 |
| 10 | 07001-02065 | Safeguard circle | 1 |
| 11 | 12P-63-10005 | Retaining ring | 2 |
| 12 | 12P-63-10300 | Compound seal Шайба | 1 |
| 13 | 07000-12070 | О-кольцо | 1 |
| 14 | 12P-63-10006 | Seal ring | 1 |
| 15 | 12P-76-05200 | Rod | 1 |
| 16 | 04065-05220 | Circlip | 2 |
| 17 | GB305.5-81 | Bearing GE35ES | 1 |
| 18 | 12P-76-05002 | Крышка | 1 |
| 19 | 01643-30623 | Шайба 6 | 3 |
| 20 | 01010-50610 | Болт M6*10 | 3 |
39. Поворотный гидроцилиндр левый
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-76-05100 | Cylinder | 1 |
| 2 | 12P-63-10001 | Гайка | 1 |
| 3 | 12P-75-10003 | Retaining ring | 1 |
| 4 | 12P-75-10100 | Compound seal Шайба | 1 |
| 5 | 12P-76-05001 | Piston | 1 |
| 6 | 07001-02020 | Safeguard circle | 1 |
| 7 | 07000-12020 | О-кольцо | 1 |
| 8 | 12P-63-10004 | Cylinder head | 1 |
| 9 | 07000-12065 | О-кольцо | 1 |
| 10 | 07001-02065 | Safeguard circle | 1 |
| 11 | 12P-63-10005 | Retaining ring | 2 |
| 12 | 12P-63-10300 | Compound seal Шайба | 1 |
| 13 | 07000-12070 | О-кольцо | 1 |
| 14 | 12P-63-10006 | Seal ring | 1 |
| 15 | 12P-76-05200 | Rod | 1 |
| 16 | 04065-05220 | Circlip | 2 |
| 17 | GB305.5-81 | Bearing GE35ES | 1 |
| 18 | 12P-76-05002 | Крышка | 1 |
| 19 | 01643-30623 | Шайба 6 | 3 |
| 20 | 01010-50610 | Болт M6*10 | 3 |

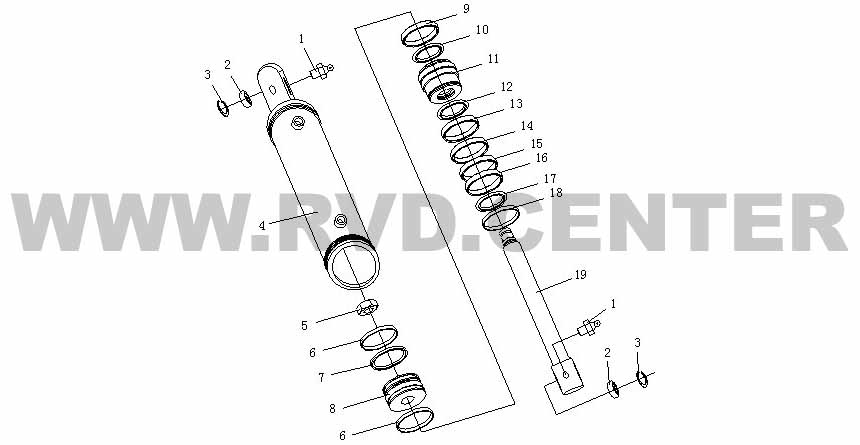

40. Колесный передний гидроцилиндр
| № | Каталожный номер | Описание | Количество |
| 1 | 07020-01021 | Grease cup M10*1 | 2 |
| 2 | GB305.5-81 | Bearing GE35ES | 2 |
| 3 | 04065-05520 | Circlip | 2 |
| 4 | 12P-76-07200 | Cylinder | 1 |
| 5 | 12P-76-07001 | Гайка | 1 |
| 6 | 12P-76-07002 | Retaining ring | 2 |
| 7 | 12P-76-07100 | Compound seal Шайба | 1 |
| 8 | 12P-76-07003 | Piston | 1 |
| 9 | 07001-03025 | Safeguard circle | 1 |
| 10 | 07000-13025 | О-кольцо | 2 |
| 11 | 12P-76-07005 | Cylinder head | 1 |
| 12 | 07000-12080 | О-кольцо | 1 |
| 13 | 07001-02080 | Safeguard circle | 1 |
| 14 | 12P-76-07300 | Compound seal Шайба | 1 |
| 15 | 12P-76-07006 | C1-seal Шайба | 1 |
| 16 | 12P-62-10006 | Retaining ring | 1 |
| 17 | 07000-12085 | О-кольцо | 1 |
| 18 | 12P-62-10007 | Seal ring | 1 |
| 19 | 12P-76-07004 | Rod | 1 |

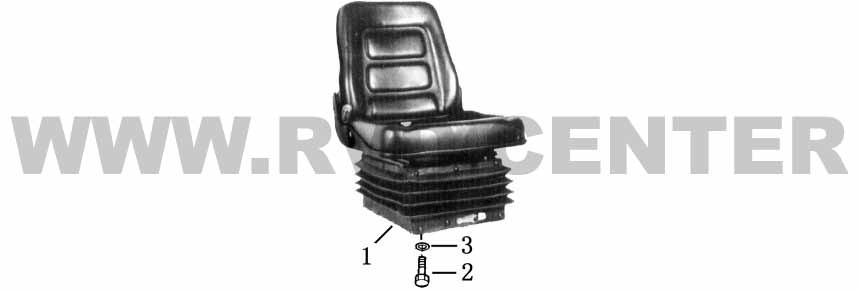

41. Сиденье оператора
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-53-01000 | Сиденье оператора | 1 |
| 2 | 01010-50825 | Болт | 4 |
| 3 | 01643-30823 | Шайба | 4 |

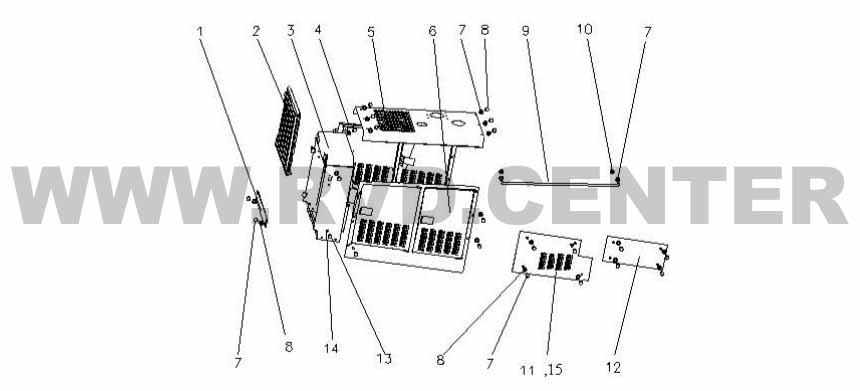

42. Капот двигателя
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-50-00002 | stopper plate | 1 |
| 2 | 12P-50-05000 | grill | 1 |
| 3 | 12P-50-01000 | hood, front | 1 |
| 4 | 12P-50D-04000 | Крышка, L.H | 1 |
| 5 | 12P-50D-03000 | Крышка, R.H | 1 |
| 6 | 12P-50D-02000 | Крышка, upper | 1 |
| 7 | 01010-50820 | Болт | 52 |
| 8 | 01643-30823 | Шайба | 52 |
| 9 | 12P-50D-00001 | handle | 2 |
| 10 | 01580-11210 | Гайка | 4 |
| 11 | 12P-50D-05000 | plate, guard LH | 1 |
| 12 | 12P-50D-00004 | plate, guard | 2 |
| 13 | 01010-51220 | Болт | 10 |
| 14 | 01643-31232 | Шайба | 14 |
| 15 | 12P-50D-06000 | plate, guard RH | 1 |
43. Кабина
| № | Каталожный номер | Описание | Количество |
| 12P-56-00000 | cab | ||
| 1 | 12P-56-01000 | body shell | 1 |
| 2 | 12P-56-04000 | mirror | 2 |
| 3 | 12P-56-05000 | mirror | 2 |
| 4 | 12P-56-09000 | mirror rack(left) | 1 |
| 5 | 12P-56-00009 | glass | 1 |
| 6 | 12P-56-00008 | filling tape | 1 |
| 7 | 12P-56-00007 | glass | 1 |
| 8 | 12P-56-00006 | filling tape | 1 |
| 9 | 12P-56-08000 | mirror rack(right) | 1 |
| 10 | 01010-31025 | Болт | 2 |
| 11 | 12P-56-13000 | inner mirror | 1 |
| 12 | 12P-56-14000 | inner mirror rack | 1 |
| 13 | 12P-56-12000 | bump hook | 2 |
| 14 | 04221-20844 | fork plate | 2 |
| 15 | 01508-40805 | Гайка | 2 |
| 16 | 01643-31232 | Шайба | 2 |
| 17 | 12P-56-00012 | spring | 2 |
| 18 | 12P-56-11000 | rod | 2 |
| 19 | 01508-40805 | Гайка | 2 |
| 20 | 12P-56-10000 | rocket | 2 |
| 21 | 09304-00835 | handle | 2 |
| 22 | 04205-10865 | pin | 2 |
| 23 | 04210-20832 | fork plate | 2 |
| 24 | 04205-10826 | pin | 4 |
| 25 | 04205-10830 | pin | 2 |
| 26 | 12P-56-00015 | sealing tape | 2 |
| 27 | 12P-56-15000 | top lining | 1 |
| 28 | 12P-56-16000 | inner lining | 1 |
| 29 | 12P-56-00014 | glass | 1 |
| 30 | 12P-56-00013 | filling tape | 1 |
| 31 | 12P-56-06000 | rubber seat | 2 |
| 32 | 12P-56-00005 | filling tape | 2 |
33 |
12P-56-00020 | plate | 2 |
| 34 | 12P-56-07000 | up-downpane assembly | 2 |
| 35 | 12P-56-00019 | filling tape | 2 |
| 36 | 01016-50812 | Болт | 4 |
| 37 | 12P-56-00018 | glass | 2 |
| 38 | 12P-56-02000 | door(left) | 1 |
| 39 | 12P-56-03000 | door(right) | 1 |
| 40 | 12P-56-00003 | filling tape | 2 |
| 41 | 12P-56-00004 | glass | 2 |
| 42 | 12P-56-00001 | filling tape | 2 |
| 43 | 12P-56-00002 | glass | 2 |
| 44 | 16Y-56A-02000 | lock | 2 |
| 45 | 12P-56-00010 | plate | 1 |
| 46 | 12P-56-00011 | plate | 1 |
| 47 | 12P-56-00016 | sealing tape | 1 |
| 48 | 12P-56-00017 | sealing tape | 2 |
| 49 | 01016-51025 | Болт | 4 |
| 50 | 01602-01030 | Шайба | 4 |
| 51 | 04050-02512 | pin | 8 |
| 52 | 01220-30620 | Болт | 8 |
| 53 | 01642-00608 | Шайба | 8 |
| 54 | 01643-31032 | Шайба | 2 |
| 55 | 01224-30408 | Болт | 20 |
| 56 | 08037-01610 | Трубка | 2 |
44. Противовес
| № | Каталожный номер | Описание | Количество |
| 1 | 01011-52790 | Болт | 6 |
| 2 | 01643-32780 | Шайба | 6 |
| 3 | 15P-85-00001 | Противовес | 1 |
45. Ящик
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-98-01000 | toolbox | 1 |
| 2 | 12P-98-02000 | pothook | 1 |
| 3 | 01643-31232 | Шайба | 6 |
| 4 | 01010-51225 | Болт | 6 |
| 5 | 12P-98-00001 | lid | 1 |
| 6 | 09455-03016 | syncretic | 3 |
46. Маркировочный места
| № | Каталожный номер | Описание | Количество |
| 1 | 09690-00800 | marked plate | 2 |
| 2 | 12P-90-00001 | marked plate | 2 |
| 3 | 12P-90-00002 | marked plate | 1 |
| 4 | 04418-03060 | rivet | 4 |
| 5 | 12P-90-00004 | marked plate | 2 |
| 6 | 09961-00100 | marked plate | 2 |
| 7 | 13P-90-00001 | marked plate | 1 |
| 8 | 13P-90-00002 | marked plate | 1 |
| 9 | 12P-90-00008 | marked plate | 4 |
| 10 | 12P-90-00009 | marked plate | 2 |
| 11 | 12P-90-00007 | marked plate | 2 |
| 12 | 16Y-90-00005 | sign, center of gravity | 2 |
| 13 | 12P-90-00003 | marked plate | 2 |
| 14 | 12P-90-00012 | marked plate | 1 |
| 15 | 12P-90-00013 | marked plate | 1 |
| 16 | 22Y-90-00008 | insignia | 1 |
| 17 | 09654-00100 | safety plate | 1 |
| 18 | 09666-00100 | safety plate | 1 |
| 19 | 09690-10400 | marked plate | 1 |
| 20 | 09653-00100 | safety plate | 1 |
| 21 | 09652-01100 | caution plate | 1 |
| 22 | 09668-00100 | marked plate | 1 |
| 23 | 09650-90104 | marked plate | 1 |
| 24 | 12P-90-00011 | marked plate | 1 |
| 25 | 12P-90-00010 | lubrication plate | 1 |
47. Электрическая схема. Часть 1.
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-07-01000 | wire ass’y | 1 |
| 2 | D2401-04500 | lamp | 4 |
| 3 | 08035-11010 | clip | 5 |
| 4 | 01010-51016 | Болт M10*16 | 5 |
| 5 | 01643-31032 | Шайба 10 | 5 |
| 6 | D2401-07001 | lamp | 2 |
| 7 | D2801-09510 | Brush | 1 |
| 8 | D2430-00000 | lamp | 1 |
| 9 | D2830-42500 | fan | 1 |
| 10 | 12P-07-02000 | wire ass’y | 1 |
| 11 | D2320-14010 | temp senso | 1 |
| 12 | D2160-00800 | inhaler senso | 1 |
| 13 | D2320-12010 | temp senso | 1 |
| 14 | 12P-07-03000 | Lamp shade | 2 |
| 15 | 12P-07D-01000 | wire ass’y | 2 |
| 16 | 01602-00619 | Шайба 6 | 2 |
| 17 | 01235-40610 | Болт M6*10 | 1 |
| 18 | D2730-09700 | Alarm bell | 1 |
| 19 | 01010-50816 | Болт M8*16 | 4 |
| 20 | 01643-30823 | Шайба | 4 |
| 21 | D2630-20000 | compound relay | 1 |
| 22 | D2601-60000 | battery relay | 1 |
| 23 | 12P-07-04000 | wire ass’y | 1 |
| 24 | D2301-00100 | press meter | 1 |
| 25 | D2580-00200 | Near switch | 2 |
| 26 | D2660-02000 | relay | 4 |
| 27 | 12P-07-00001 | Board | 1 |
| 28 | 12P-07-00002 | Bracket | 2 |
| 29 | 12P-07-20000 | wire ass’y 2 | 1 |
| 30 | 12P-07-17000 | wire ass’y | 1 |
| 31 | 12P-07-05000 | wire ass’y | 1 |
| 32 | 12P-07D-02000 | wire ass’y | 1 |
| 33 | D2711-10500 | horn | 1 |
| 34 | 12P-07-00004 | Шайба 5*230*1100 | 1 |
| 35 | 12P-07-00005 | Шайба 5*230*570 | 2 |
48. Электрическая схема. Часть 2.
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-07-06000 | bracket | 1 |
| 2 | D2451-00200 | lamp | 1 |
| 3 | 12P-07-07000 | bracket | 2 |
| 4 | D2400-00210 | lamp | 1 |
| 5 | 12P-07-08000 | bracket | 1 |
| 6 | D2500-00000 | start switch | 1 |
| 7 | 12P-07-09000 | board | 1 |
| 8 | 12P-07-10000 | cable | 1 |
| 9 | 12P-07-11000 | cable | 1 |
| 10 | 12P-07-12000 | cable | 1 |
| 11 | 08000-00000 | linker | 2 |
| 12 | 08000-00001 | linker | 2 |
| 13 | D1010-18000 | accumulator | 2 |
| 14 | 12P-07-13000 | board | 2 |
| 15 | 01580-11008 | Гайка M10 | 8 |
| 16 | 12P-07-14000 | staff | 4 |
| 17 | 01602-31236 | Шайба 12 | 6 |
| 18 | 01643-31232 | Шайба 12 | 6 |
| 19 | 01010-81220 | Болт M12*20 | 6 |
| 20 | 12P-07-15000 | box | 1 |
| 21 | 12P-07-16000 | cable | 1 |
| 22 | 08035-02512 | clip | 2 |
49. Электрическая схема. Часть 3.
| № | Каталожный номер | Описание | Количество |
| 1 | D2112-12010 | Temperature meter | 1 |
| 2 | D2140-03210 | Voltage meter | 1 |
| 3 | D1170-00010 | stopwatch | 1 |
| 4 | D2460-00000 | pilot lamp | 1 |
| 5 | D2122-14010 | Temperature meter | 1 |
| 6 | D2102-01010 | Press watch | 1 |
| 7 | D2450-00300 | lamp | 2 |
| 8 | D2401-07030 | lamp | 2 |
| 9 | D2540-08100 | On-off | 1 |
| 10 | D2540-08110 | On-off | 1 |
| 11 | D2540-08060 | On-off | 1 |
| 12 | D2540-08120 | On-off | 1 |
| 13 | D2540-08130 | On-off | 1 |
| 14 | D2540-08070 | On-off | 1 |
| 15 | D2763-01400 | fuse | 1 |
| 16 | D2611-10001 | Warm-up relay | 1 |
| 17 | 01235-40610 | Болт M6*10 | 4 |
| 18 | 01602-20619 | Шайба 6 | 4 |
| 19 | 12P-07-00003 | Plate | 1 |
| 20 | 01010-51016 | Болт | 2 |
| 21 | 01643-31032 | Шайба | 2 |
50. Бульдозерный отвал
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-80-05002 | Болт | 20 |
| 2 | 12P-81-00003 | cutting edge | 1 |
| 3 | 12P-81-01000 | blade | 1 |
| 4 | 16L-80-00001 | Гайка | 20 |
| 5 | 12P-81-00001 | pin shaft | 10 |
| 6 | 07020-01021 | fitting grease | 10 |
| 7 | 01010-51435 | Болт | 4 |
| 8 | 01643-31445 | Шайба | 4 |
| 9 | 04082-00514 | stopper plate | 2 |
| 10 | 12P-81-00002 | Втулка | 4 |
| 11 | GB9163-GE50ES | bearing | 8 |
| 12 | 01010-51225 | Болт | 4 |
| 13 | 01643-31232 | Шайба | 16 |
| 14 | 04082-00209 | stopper plate | 8 |
| 15 | 12P-81-05000 | bracket | 1 |
| 16 | 12P-81-07000 | hose | 1 |
| 17 | 07000-12016 | О-кольцо | 4 |
| 18 | 12P-62-00002 | joint | 2 |
| 19 | 12P-62-00600 | joint | 2 |
| 20 | 12P-81-04000 | cylinder ass’y | 1 |
| 21 | 12P-81-06000 | hose | 1 |
| 22 | 12P-81-00004 | Трубка | 2 |
| 23 | 12P-81-02000 | rod | 2 |
| 24 | 12P-81-03000 | link frame | 1 |
| 25 | 12P-81-00005 | cutting edge | 1 |
| 26 | 04065-07525 | ring | 4 |
51. Гидроцилиндр бульдозерного отвала
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-81-04001 | Set | 2 |
| 2 | GB9163 | Bearing | 1 |
| 3 | 04065-07525 | Circlip | 2 |
| 4 | 12P-81-04100 | Cylinder | 1 |
| 5 | 07165-13033 | Гайка | 1 |
| 6 | 111-63-01007 | Retaining ring | 2 |
| 7 | 111-63-01006 | Compound seal Шайба | 1 |
| 8 | 111-63-01005 | Piston | 1 |
| 9 | 07000-13030 | О-кольцо | 1 |
| 10 | 111-63-01004 | Cylinder head | 1 |
| 11 | 07000-12085 | О-кольцо | 1 |
| 12 | 07001-02086 | Safeguard circle | 1 |
| 13 | 07177-04530 | Set | 1 |
| 14 | 111-63-01003 | Seal Шайба | 1 |
| 15 | 111-63-01002 | KY-Шайба | 1 |
| 16 | 07000-12090 | О-кольцо | 1 |
| 17 | 111-63-01001 | Seal ring | 1 |
| 18 | 111-63-01009 | Шайба | 1 |
| 19 | 12P-81-04200 | Rod | 1 |
| 20 | 07145-00050 | Seal ring | 4 |
52. Рыхлитель в сборе
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-84-50000 | link plate | 1 |
| 2 | 01010-52480 | Болт | 8 |
| 3 | 01643-32460 | Шайба | 8 |
| 4 | 12P-84-00004 | Наборное кольцо | 20 |
| 5 | 12P-84-00013 | pin shaft | 2 |
| 6 | 12P-84-00003 | Наборное кольцо | 8 |
| 7 | 12P-84-20000 | bracket, cylinder L.H | 1 |
| 8 | 12P-84-00009 | pin shaft | 2 |
| 9 | 12P-84-00005 | link rod | 2 |
| 10 | 12P-84-40000 | link rod | 2 |
| 11 | 12P-84-10000 | beam | 1 |
| 12 | 12P-84-00002 | shank | 5 |
| 13 | 12P-84-00001 | pin shaft | 10 |
| 14 | 04050-10060 | pin cotter | 10 |
| 15 | 12P-84-60000 | Втулка, pin | 5 |
| 16 | 12P-84-00006 | point | 5 |
| 17 | 01643-31032 | Шайба | 12 |
| 18 | 01010-51025 | Болт | 12 |
| 19 | 04082-00106 | stopper plate | 12 |
| 20 | 07020-00613 | fitting grease | 12 |
| 21 | 12P-84-00010 | pin shaft | 2 |
| 22 | 12P-84-00011 | Втулка | 10 |
| 23 | 12P-84-00008 | pin shaft | 2 |
| 24 | 12P-84-00007 | Втулка | 10 |
| 25 | 12P-84-00012 | pin shaft | 2 |
| 26 | 01643-33380 | Шайба | 4 |
| 27 | 01010-53390 | Болт | 4 |
| 28 | 12P-84-30000 | cylinder bracket R.H | 1 |
53. Гидравлическая схема рыхлителя
| № | Каталожный номер | Описание | Количество |
| 1 | 12P-62-00002 | joint | 2 |
| 2 | 07000-12026 | О-кольцо | 2 |
| 3 | 12P-86-10000 | hose | 2 |
| 4 | 12P-62-00300 | clip | 4 |
| 5 | 12P-86-30000 | hose | 2 |
| 6 | 12P-86-00001 | joint | 2 |
| 7 | 12P-86-40000 | hose | 2 |
| 8 | 07002-12034 | О-кольцо | 4 |
| 9 | 12P-62-00003 | joint | 4 |
| 10 | 12P-86-20000 | cylinder | 2 |
| 11 | 01010-50816 | Болт | 2 |
| 12 | 01643-30823 | Шайба | 2 |
| 13 | 01581-10816 | Гайка | 2 |
54. Гидроцилиндр рыхлителя
| № | Каталожный номер | Описание | Количество |
| 1 | 07000-13040 | О-кольцо | 2 |
| 2 | 04065-09030 | Ring | 2 |
| 3 | 07137-04006 | Bear | 1 |
| 4 | 12P-86-20100 | Cylinder | 1 |
| 5 | 12P-62-10003 | Гайка | 1 |
| 6 | 12P-62-10100 | Ring | 1 |
| 7 | 12P-62-10004 | Retain ring | 2 |
| 8 | 12P-62-10009 | Piston | 1 |
| 9 | 07001-02075 | Ring | 1 |
| 10 | 07000-12075 | Ring | 1 |
| 11 | 12P-62-10005 | Cylinder head | 1 |
| 12 | 07000-12080 | Ring | 1 |
| 13 | 07000-13025 | Ring | 1 |
| 14 | 12P-62-10300 | Ring | 1 |
| 15 | 12P-62-10006 | Retain ring | 1 |
| 16 | 07001-03025 | Ring | 1 |
| 17 | 12P-62-10007 | Ring | 1 |
| 18 | 12P-86-20200 | Piston rod | 1 |
