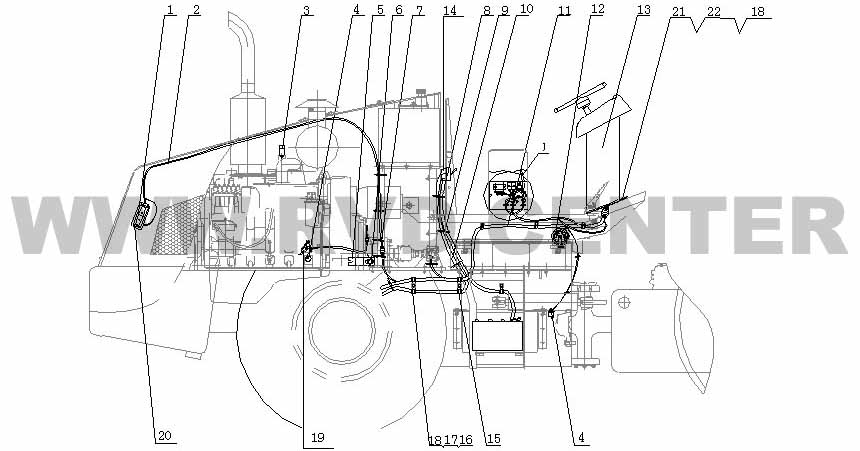

1. Электрическая схема
№ | Каталожный номер | Описание | Количество |
1 | D2441-00010 | Lamp | 2 |
2 | 263-07-01000 | Wire ass’y | 1 |
3 | D2160-00800 | Inhaler sensor | 1 |
4 | D2300-00010 | Ppress meter | 1 |
5 | 263-07-00001 | Board | 1 |
6 | D2580-01000 | Near switch | 1 |
7 | 08034-20536 | Clip | 6 |
8 | D2602-05000 | On-off | 1 |
9 | 263-07-02000 | Cable | 1 |
10 | 263-07-03000 | Cable | 1 |
11 | 263-07-04000 | Wire ass’y | 1 |
12 | D2711-10500 | Horn | 1 |
13 | 261-07-10000 | Box | 1 |
14 | 08038-00035 | Cover | 3 |
15 | 08035-12508 | Clip | 2 |
16 | 08035-12510 | Clip | 6 |
17 | 01010-51016 | Bolt M10*16 | 6 |
18 | 01643-31032 | Washer 10 | 6 |
19 | 08035-11010 | Clip | 2 |
20 | 01235-40520 | Bolt M5*20 | 4 |
21 | 01010-51035 | Bolt M10*35 | 4 |
22 | 01580-11008 | Nut M10 | 2 |

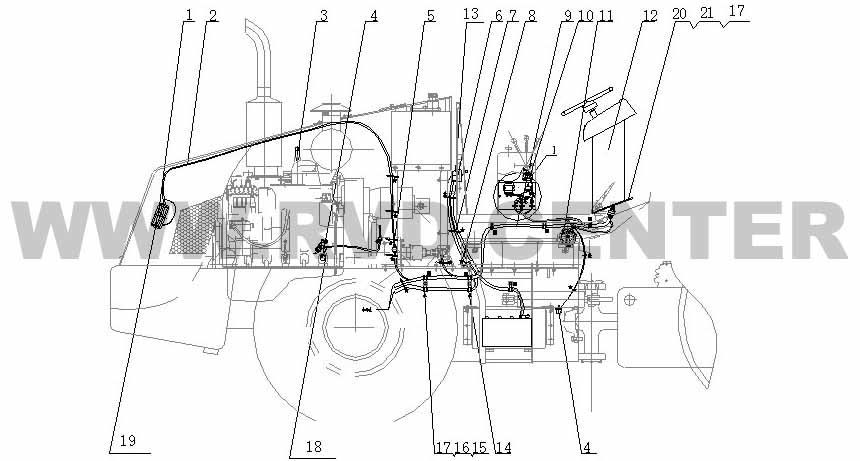

2. Электрическая схема для модели SR20M-2
№ | Каталожный номер | Описание | Количество |
1 | D2441-00010 | lamp | 2 |
2 | 263-07-01000 | wire ass’y | 1 |
3 | D2160-00800 | inhaler sensor | 1 |
4 | D2300-00010 | press meter | 2 |
5 | 08034-20536 | clip | 6 |
6 | D2602-05000 | On-off | 1 |
7 | 263-07-02000 | cable | 1 |
8 | 263-07-03000 | cable | 1 |
9 | 263-07-12000 | wire ass’y | 1 |
10 | D2590-00800 | switch | 1 |
11 | D2711-10500 | horn | 1 |
12 | 263-07-10000 | box | 1 |
13 | 08038-00035 | hood | 1 |
14 | 08035-12508 | clip | 2 |
15 | 08035-12510 | clip | 6 |
16 | 01010-51016 | bolt M10*16 | 6 |
17 | 01643-31032 | washer 10 | 6 |
18 | 08035-11010 | clip | 2 |
19 | 01235-40520 | Bolt M5*10 | 4 |
20 | 01010-51035 | Bolt M10*35 | 4 |
21 | 01580-11008 | Nut | 2 |

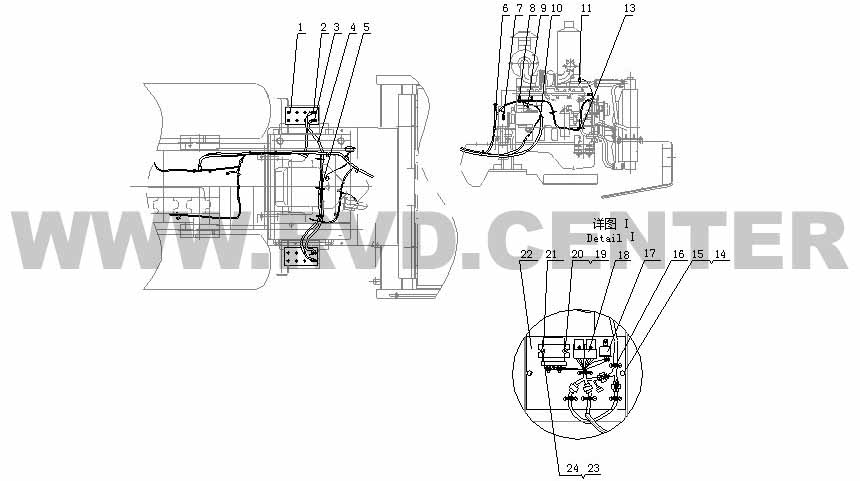

3. Электрическая схема
№ | Каталожный номер | Описание | Количество |
1 | D1010-18000 | accumulator | 2 |
2 | 08000-00000 | linker + | 2 |
3 | 08000-00001 | linker - | 2 |
4 | 263-07-08000 | cable | 1 |
5 | 263-07-07000 | cable | 1 |
6 | 263-07-05000 | wire ass’y | 1 |
7 | D2350-00000 | Rev sensor | 1 |
8 | 08035-11010 | clip | 5 |
9 | 08038-00519 | cover | 1 |
10 | 08038-00035 | cover | 3 |
11 | D2320-00010 | temp sensor | 1 |
13 | 08034-20519 | hoop | 2 |
14 | 01643-30823 | washer 8 | 4 |
15 | 01010-50820 | bolt M8*20 | 4 |
16 | 08034-20519 | hoop | 5 |
17 | D2700-00000 | Flash ware | 1 |
18 | D2660-02000 | relay | 2 |
19 | 01642-20508 | washer 5 | 17 |
20 | 01235-40512 | bolt M5*12 | 17 |
21 | D2610-20010 | relay | 1 |
22 | 263-07-06000 | board | 1 |
23 | 01643-30623 | washer 6 | 2 |
24 | 01220-30612 | bolt M6*12 | 2 |

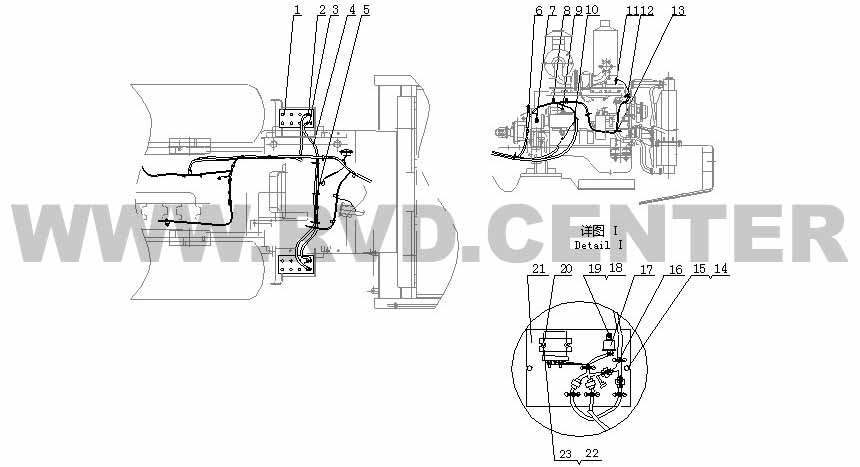

4. Электрическая схема для модели SR20M-2
№ | Каталожный номер | Описание | Количество |
1 | D1010-18000 | accumulator | 2 |
2 | 08000-00000 | linker + | 2 |
3 | 08000-00001 | linker - | 2 |
4 | 263-07-08000 | cable | 1 |
5 | 263-07-07000 | cable | 1 |
6 | 263-07-11000 | wire ass’y | 1 |
7 | D2350-00000 | Rev sensor | 6 |
8 | 08035-11010 | clip | 3 |
9 | 08038-00519 | cover | 3 |
10 | 08038-00035 | cover | 1 |
11 | D2320-12010 | temp sensor | 1 |
12 | 08038-00519 | cover | 1 |
13 | 08034-20519 | hoop | 2 |
14 | 01643-30823 | washer 8 | 1 |
15 | 01010-50820 | bolt M8*20 | 2 |
16 | 08034-20519 | hoop | 5 |
17 | D2700-00000 | Flash ware | 1 |
18 | 01642-20508 | washer 5 | 4 |
19 | 01235-40512 | bolt M5*12 | 4 |
20 | D2610-20010 | relay | 1 |
21 | 263-07-06000 | board | 1 |
22 | 01643-30623 | washer 6 | 2 |
23 | 01220-30612 | bolt M6*12 | 2 |

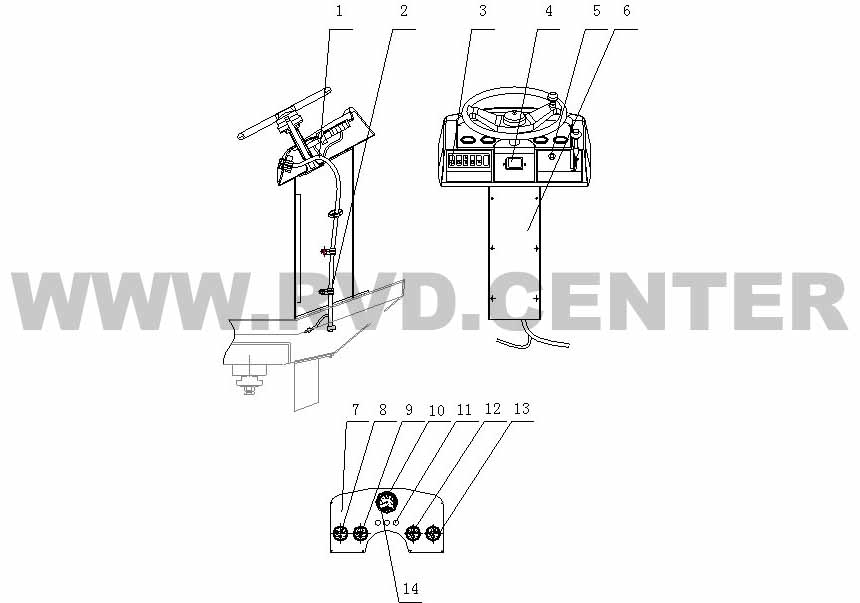

5. Приборная панель
№ | Каталожный номер | Описание | Количество |
1 | 263-07-09000 | wire ass’y | 1 |
2 | 08035-12010 | clip | 2 |
3 | D2560-00000 | On-off | 1 |
4 | D2763-00900 | fuse BX2091 | 1 |
5 | D2500-00000 | start switch | 1 |
6 | 261-07-00002 | board | 1 |
7 | 261-07-00003 | board | 1 |
8 | D2112-12010 | Temperature meter | 1 |
9 | D2102-01010 | Press watch | 1 |
10 | D2210-03500 | stopwatch | 1 |
11 | D2461-00000 | pilot lamp | 2 |
12 | D2190-01000 | Press watch | 1 |
13 | D2140-03210 | Voltage meter | 1 |
14 | D2460-00000 | pilot lamp | 1 |

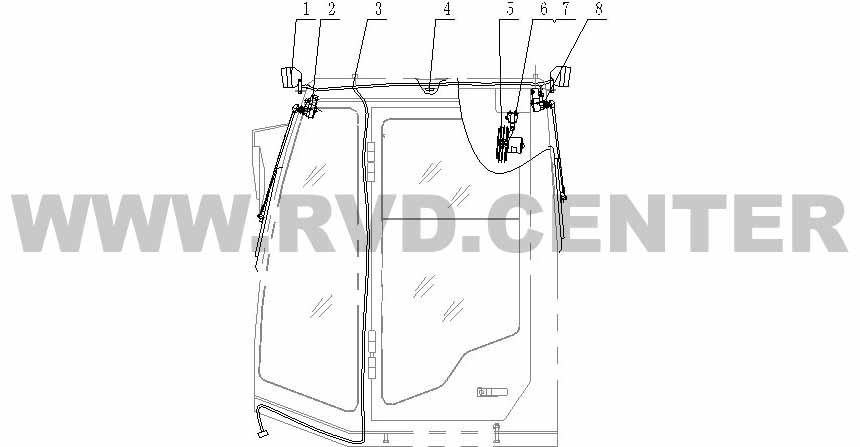

6. Электрическая схема рабочего освещения
№ | Каталожный номер | Описание | Количество |
1 | D2401-00020 | Lamp | 4 |
2 | D2801-09010 | Rain water | 1 |
3 | 263-08-01000 | Wire ass’y | 1 |
4 | D2430-00000 | Lamp | 1 |
5 | D2830-42500 | Fan | 1 |
6 | 01252-30620 | Bolt M6*20 | 4 |
7 | 01643-30623 | Washer 10 | 4 |
8 | D2801-09000 | Rain water | 1 |
