1. Крестовина
| № | Каталожный номер | Описание | Количество |
| 175-20-30000 | universal joint ass’y | 1 | |
| 1 | 175-20-11140 | fitting, grease | 1x2 |
| 2 | 175-20-11110 | bearing | 4x2 |
| 3 | 175-20-11120 | spider | 1x2 |
| 4 | 175-20-11130 | plate | 1 |
| 5 | 01010-51260 | bolt | 8 |
| 6 | 01602-21236 | washer, spring | 8 |
| 7 | 01010-51260 | bolt | 8 |
| 8 | 01602-21236 | washer, spring | 8 |

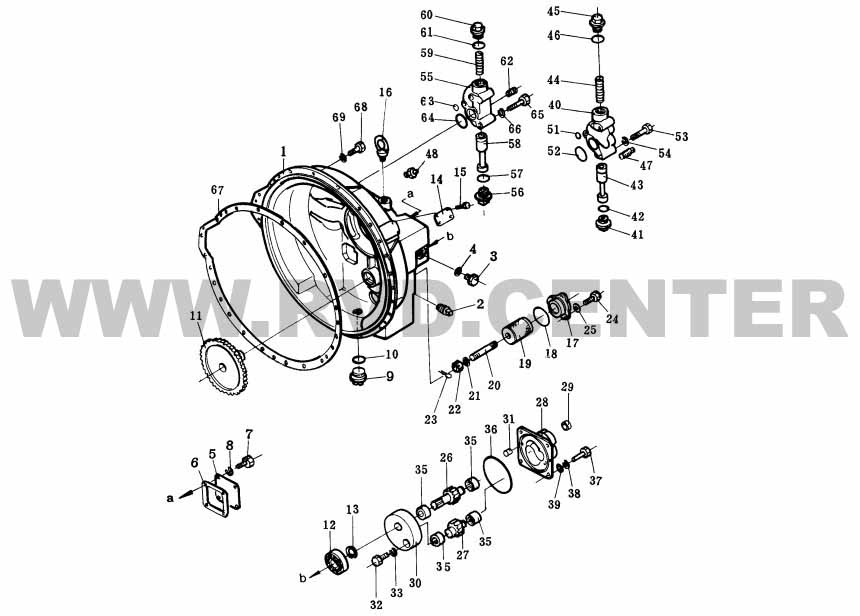

2. Корпус гидротрансформатора и регулировочный клапан
| № | Каталожный номер | Описание | Количество |
| 175-13-21007 | Torque converter ass’y | 1 | |
| 1 | 195-13-13114 | housing | 1 |
| 2 | 07042-20415 | plug | 3 |
| 3 | 175-13-23290 | plug | 1 |
| 4 | 07005-01612 | gasket | 1 |
| 5 | 175-13-23220 | cover | 1 |
| 6 | 175-13-23231 | gasket | 1 |
| 7 | 01010-51225 | bolt | 4 |
| 8 | 01602-21236 | washer, spring | 4 |
| 9 | 07044-13620 | plug, magnetic | 1 |
| 10 | 07002-43634 | O-ring | 1 |
| 11 | 175-13-24111 | gear | 1 |
| 12 | 06030-05206 | bearing | 1 |
| 13 | 04064-03015 | washer, spring | 1 |
| 14 | 09607-05080 | plate name | 1 |
| 15 | 04418-03060 | screw, tapping | 4 |
| 16 | 04530-11628 | bolt, eye | 2 |
| 195-13-13400 | filter ass’y | 1 | |
| 17 | 195-13-13410 | cover | 1 |
| 18 | 07000-62070 | O-ring | 1 |
| 19 | 195-13-13420 | filter | 1 |
| 20 | 195-13-13430 | stud | 1 |
| 21 | 01641-20608 | washer | 1 |
| 22 | 01590-10607 | nut | 1 |
| 23 | 04050-11212 | pin, cotter | 1 |
| 24 | 01010-51230 | bolt | 3 |
| 25 | 01643-31232 | washer | 3 |
| 26 | 175-13-23500 | scavenging pump ass’y | 1 |
| 175-13-23510 | drive gear ass’y | 1 | |
| 175-13-23580 | gear | 1 | |
| 175-13-23610 | shaft | 1 | |
| 27 | 175-13-23520 | driven gear ass’y | 1 |
| 175-13-23580 | gear | 1 | |
| 175-13-23620 | shaft | 1 | |
| 28 | 138-13-23530 | case, pump | 1 |
| 29 | 01190-01011 | helisert | 2 |
| 30 | 175-13-23540 | cover | 1 |
| 31 | 04020-00820 | pin | 2 |
| 32 | 01010-50835 | bolt | 4 |
| 33 | 01602-20825 | washer, spring | 4 |
| 34 | 01641-20812 | washer | 4 |
| 36 | 07000-62115 | O-ring | 1 |
| 37 | 01010-51235 | bolt | 4 |
| 38 | 01602-21236 | washer, spring | 4 |
| 39 | 01641-21223 | washer | 4 |
| 195-13-16100 | relief valve ass’y | 1 | |
| 40 | 195-13-16110 | body, valve | 1 |
| 41 | 195-13-16450 | plug | 1 |
| 42 | 07002-43634 | O-ring | 1 |
| 43 | 195-13-16120 | spool, valve | 1 |
| 44 | 195-13-16131 | spring | 1 |
| 45 | 195-13-16141 | plug | 1 |
| 46 | 07002-43634 | O-ring | 1 |
| 47 | 07042-20108 | plug, taper | 1 |
| 48 | 07020-00613 | fitting, grease | 1 |
| 51 | 07000-62018 | O-ring | 1 |
| 52 | 07000-63045 | O-ring | 1 |
| 53 | 01010-51290 | bolt | 3 |
| 54 | 01602-21236 | washer, spring | 3 |
| 175-13-26401 | regulator valve ass’y | 1 | |
| 55 | 175-13-26410 | body, valve | 1 |
| 56 | 195-13-16450 | plug | 1 |
| 57 | 07002-43634 | O-ring | 1 |
| 58 | 195-13-16420 | spool, valve | 1 |
| 59 | 195-13-16430 | spring | 1 |
| 60 | 195-13-16141 | plug | 1 |
| 61 | 07002-43634 | O-ring | 1 |
| 62 | 07042-20108 | plug | 1 |
| 63 | 07000-62018 | O-ring | 1 |
| 64 | 07000-63045 | O-ring | 1 |
| 65 | 01010-51295 | bolt | 3 |
| 66 | 01602-21236 | washer, spring | 3 |
| 67 | 175-11-11112 | gasket , torque to engine | 1 |
| 68 | 01010-51240 | bolt | 23 |
| 69 | 01602-21236 | washer, spring | 23 |

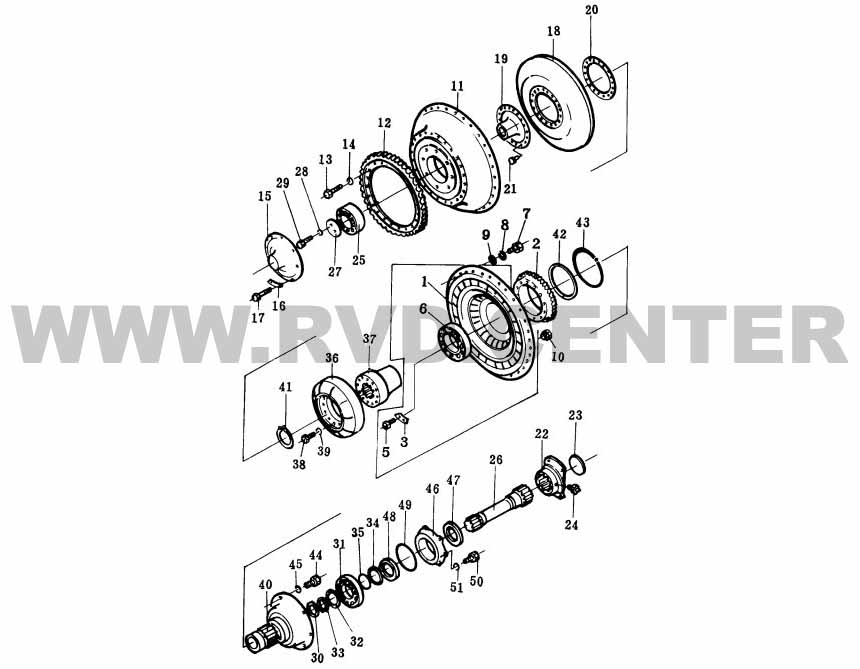

3. Турбина и статор ГТР
| № | Каталожный номер | Описание | Количество |
| 175-13-21007 | Torque converter ass’y | 1 | |
| 1 | 175-13-21124 | pump | 1 |
| 2 | 175-13-21141 | gear | 1 |
| 3 | 01643-31032 | washer | 12 |
| 5 | 01010-51035 | bolt | 12 |
| 6 | 175-13-21160 | bearing | 1 |
| 7 | 01010-61035 | bolt | 30 |
| 8 | 01602-21030 | washer, spring | 30 |
| 9 | 01643-31032 | washer | 30 |
| 10 | 07040-11007 | plug | 2 |
| 11 | 175-13-21213 | case | 1 |
| 12 | 175-13-21220 | gear | 1 |
| 13 | 01010-61230 | bolt | 24 |
| 14 | 01643-21232 | washer | 24 |
| 15 | 175-13-21253 | pilot | 1 |
| 16 | 195-13-11261 | gasket, lock | 4 |
| 17 | 01010-51230 | bolt | 8 |
| 175-13-21513 | turbine ass’y | 1 | |
| 18 | 175-13-21552 | turbine | 1 |
| 19 | 175-13-21532 | boss | 1 |
| 20 | 175-13-21540 | plate | 1 |
| 21 | 195-13-11550 | rivet | 18 |
| 175-13-21641 | coupling ass’y | 1 | |
| 22 | 175-13-21662 | coupling | 1 |
| 23 | 175-13-11671 | cover | 1 |
| 24 | 07020-00613 | fitting grease | 1 |
| 25 | 175-13-21240 | bearing | 1 |
| 26 | 175-13-21654 | shaft | 1 |
| 27 | 175-13-21692 | ring, snap | 1 |
| 28 | 175-13-21712 | gasket, lock | 1 |
| 29 | 175-13-11810 | bolt, reamer | 2 |
| 30 | 178-13-11720 | ring, seal | 1 |
| 31 | 06040-06313 | bearing | 1 |
| 32 | 175-13-21770 | washer | 1 |
| 33 | 04064-06525 | ring, snap | 1 |
| 34 | 175-13-21750 | seat | 1 |
| 35 | 07000-35055 | O-ring | 1 |
| 36 | 175-13-22313 | stator | 1 |
| 37 | 175-13-22122 | race | 1 |
| 38 | 01010-51030 | bolt | 12 |
| 39 | 01643-31032 | washer | 12 |
| 40 | 175-13-22524 | shaft | 1 |
| 41 | 04064-08530 | ring, snap | 1 |
| 42 | 195-13-12711 | ring, seal | 1 |
| 43 | 07000-65190 | O-ring | 1 |
| 44 | 01010-51235 | bolt | 6 |
| 45 | 01602-21236 | washer, spring | 6 |
| 46 | 175-13-22721 | cover | 1 |
| 47 | 175-13-22730 | seal | 1 |
| 48 | 07011-10080 | seal, oil | 1 |
| 49 | 07000-65135 | O-ring | 1 |
| 50 | 01010-51230 | bolt | 6 |
| 51 | 01010-21236 | washer, spring | 6 |

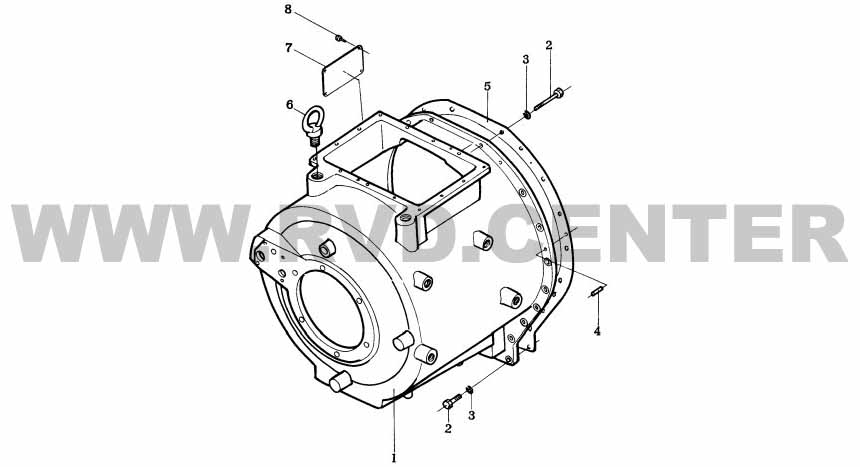

4. Корпус КПП
| № | Каталожный номер | Описание | Количество |
| 175-15-00226 | Transmission ass’y | 1 | |
| 1 | 175-15-41111 | case | 1 |
| 2 | 01010-51240 | bolt | 22 |
| 3 | 01602-01236 | washer, spring | 22 |
| 4 | 04020-01228 | pin, dowel | 1 |
| 5 | 175-15-41121 | gasket | 1 |
| 6 | 04530-02438 | bolt, eye | 2 |
| 7 | 09608-005080 | plate, name | 1 |
| 8 | 04418-03060 | screw, tapping | 4 |

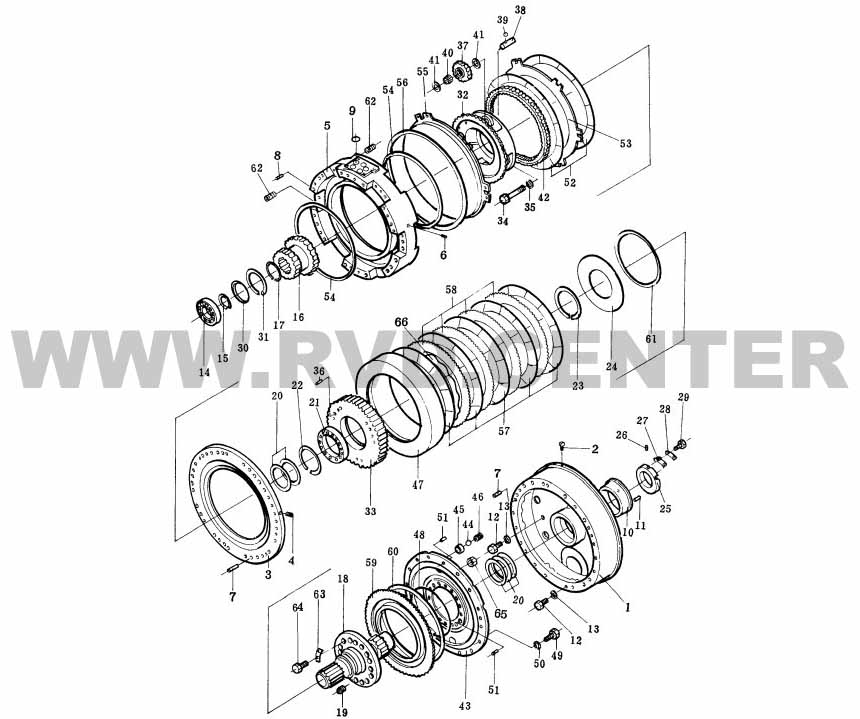

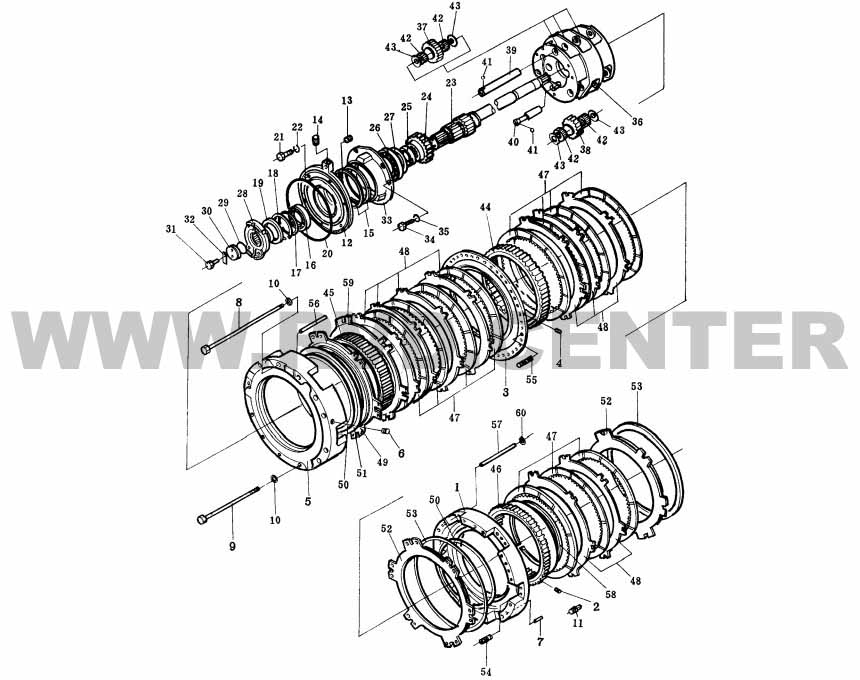

5. Коробка переключения передач в разборе
| № | Каталожный номер | Описание | Количество |
| 175-15-00216 | Torque flow transmission ass’y | 1 | |
| 175-15-00226 | Transmission ass’y | 1 | |
| 175-15-00260 | housing ass’y | 1 | |
| 1 | 175-15-41160 | housing | 1 |
| 2 | 145-14-11320 | plug | 2 |
| 3 | 175-15-41172 | plate | 1 |
| 4 | 145-14-11320 | plug | 2 |
| 5 | 175-15-41189 | housing | 1 |
| 6 | 145-14-11320 | plug | 2 |
| 7 | 04020-01228 | pin, dowel | 2 |
| 8 | 175-15-41192 | bolt | 12 |
| 9 | 175-15-41292 | bolt | 2 |
| 10 | 145-14-11570 | washer | 14 |
| 11 | 09231-01430 | sleeve | 4 |
| 12 | 175-15-41211 | cage | 4 |
| 13 | 195-15-11230 | plug | 1 |
| 14 | 07042-00211 | plug, taper | 1 |
| 15 | 07018-11805 | ring, seal | 2 |
| 16 | 06000-06016 | bearing, ring | 1 |
| 17 | 195-15-11240 | spacer | 1 |
| 18 | 170-14-22140 | ring, snap | 1 |
| 19 | 07012-10100 | seal, oil | 1 |
| 20 | 07000-05290 | O-ring | 1 |
| 21 | 01010-51235 | bolt | 6 |
| 22 | 01602-01236 | washer, spring | 6 |
| 23 | 175-15-42112 | shaft | 1 |
| 24 | 175-15-42122 | gear, sun, follower | 1 |
| 25 | 195-15-12141 | spacer | 1 |
| 26 | 06000-06924 | bearing | 1 |
| 27 | 130-09-16780 | ring, snap | 1 |
| 28 | 175-15-42151 | coupling, universal | 1 |
| 29 | 07000-05055 | O-ring | 1 |
| 30 | 175-15-12160 | plate, coupling | 1 |
| 31 | 01010-31230 | bolt | 2 |
| 32 | 04081-05512 | plate, lock | 1 |
| 33 | 175-15-42311 | cage, bearing | 1 |
| 34 | 01010-31230 | bolt | 6 |
| 35 | 01602-01236 | washer, spring | 6 |
| 36 | 175-15-42322 | carrier, planetary | 1 |
| 37 | 175-15-42451 | gear | 9 |
| 38 | 175-15-42471 | gear | 3 |
| 39 | 175-15-42512 | shaft | 3 |
| 40 | 175-15-42532 | shaft | 3 |
| 41 | 04260-00635 | ball | 6 |
| 42 | 09232-05125 | bearing | 24 |
| 43 | 09233-05125 | washer | 24 |
| 44 | 175-15-42610 | gear, ring | 1 |
| 45 | 175-15-42620 | gear, ring | 1 |
| 46 | 175-15-42632 | gear, ring, 3rd | 1 |
| 47 | 175-15-12715 | disk, clutch | 11 |
| 48 | 175-15-42721 | plate, clutch | 9 |
| 49 | 175-15-42860 | piston | 1 |
| 50 | 175-15-12750 | ring, seal | 2 |
| 51 | 175-15-12820 | ring, seal | 1 |
| 52 | 175-15-42870 | piston | 2 |
| 53 | 195-15-12740 | ring, seal | 2 |
| 54 | 175-15-42780 | spring | 12 |
| 55 | 145-14-12810 | spring | 12 |
| 56 | 145-14-12760 | pin | 6 |
| 57 | 175-15-12780 | pin | 6 |
| 58 | 175-15-42670 | ring, snap | 1 |
| 59 | 175-15-42920 | plate | 1 |
| 60 | 175-15-42880 | spring, washer tape | 78 |
| № | Каталожный номер | Описание | Количество |
| 175-15-00216 | Torque flow transmission ass’y | 1 | |
| 175-15-00226 | Transmission ass’y | 1 | |
| 1 | 178-15-11130 | housing | 1 |
| 2 | 234-15-12780 | screw | 3 |
| 3 | 175-15-41140 | plate | 1 |
| 4 | 145-14-11320 | plug | 2 |
| 5 | 175-14-41150 | housing | 1 |
| 6 | 145-14-11320 | plug | 2 |
| 7 | 175-15-31210 | pin, dowel | 4 |
| 8 | 04020-01228 | pin | 2 |
| 9 | 07000-63022 | O-ring | 5 |
| 10 | 175-15-41310 | collar | 1 |
| 11 | 04020-00616 | pin | 1 |
| 12 | 01010-31425 | bolt | 2 |
| 13 | 01602-01442 | washer, spring | 2 |
| 14 | 06042-00212 | bearing | 1 |
| 15 | 04064-06020 | ring, snap | 1 |
| 16 | 175-15-42131 | gear | 1 |
| 17 | 04064-08530 | ring, snap | 1 |
| 18 | 175-15-42213 | shaft | 1 |
| 19 | 145-14-11320 | plug | 8 |
| 20 | 175-15-42850 | ring, seal | 5 |
| 21 | 06000-06924 | bearing | 1 |
| 22 | 130-09-16780 | ring, snap | 1 |
| 23 | 04070-00130 | ring, snap | 1 |
| 24 | 175-15-42180 | spring, rim | 1 |
| 25 | 234-21-12180 | nut | 1 |
| 26 | 175-15-42220 | pin | 1 |
| 27 | 234-21-12190 | plate | 1 |
| 28 | 234-21-12210 | plate, lock | 1 |
| 29 | 01010-30816 | bolt | 2 |
| 30 | 175-15-42340 | plate | 1 |
| 31 | 130-09-15740 | ring, snap | 1 |
| 32 | 175-15-42364 | carrier, planetary | 1 |
| 33 | 175-15-42571 | gear, drum | 1 |
| 34 | 01010-31490 | bolt | 6 |
| 35 | 01602-01442 | washer, spring | 6 |
| 36 | 04020-01228 | pin | 6 |
| 37 | 175-15-42491 | gear | 3 |
| 38 | 175-15-42552 | shaft | 3 |
| 39 | 04260-00635 | ball | 3 |
| 40 | 09232-03838 | bearing | 3 |
| 41 | 09233-03820 | washer | 6 |
| 42 | 175-15-42650 | gear, ring | 1 |
| 43 | 175-15-42412 | housing cylinder | 1 |
| 44 | 04260-00952 | ball | 2 |
| 45 | 175-15-42971 | collar valve | 2 |
| 46 | 234-15-12790 | screw | 2 |
| 47 | 175-15-42421 | drum | 1 |
| 48 | 175-15-42430 | O-ring | 1 |
| 49 | 01010-31230 | bolt | 12 |
| 50 | 01602-01236 | washer, spring | 12 |
| 51 | 04020-01228 | pin | 4 |
| 52 | 175-15-12715 | disk, clutch | 2 |
| 53 | 175-15-42721 | plate | 1 |
| 54 | 175-15-12750 | ring, seal | 2 |
| 55 | 175-15-42870 | piston | 1 |
| 56 | 195-15-12740 | ring, seal | 1 |
| 57 | 154-15-12715 | disk, clutch | 5 |
| 58 | 281-15-12720 | plate | 4 |
| 59 | 175-15-42740 | piston | 1 |
| 60 | 175-15-42750 | ring, seal | 1 |
| 61 | 234-15-11220 | ring, seal | 1 |
| 62 | 145-14-12790 | spring | 24 |
| 63 | 175-15-42240 | plate, lock | 8 |
| 64 | 175-15-42230 | bolt | 16 |
| 65 | 01582-01210 | nut | 16 |
| 66 | 175-15-42890 | spring | 5 |

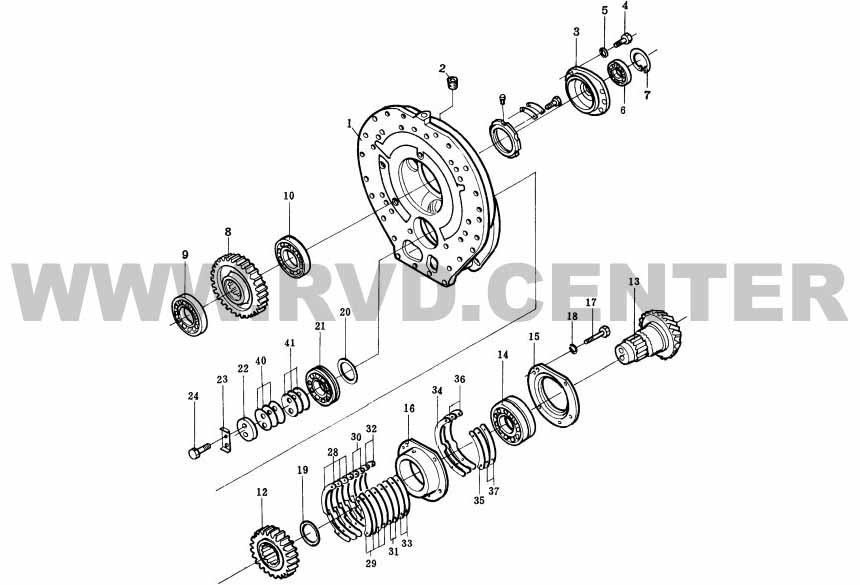

6. Раздаточный узел
| № | Каталожный номер | Описание | Количество |
| 175-15-00216 | Torque flow transmission ass’y | 1 | |
| 175-15-00226 | Transmission ass’y | 1 | |
| 1 | 175-15-43116 | rear housing | 1 |
| 2 | 07042-20211 | plug, taper | 1 |
| 3 | 175-15-43152 | case | 1 |
| 4 | 01010-31240 | bolt | 5 |
| 5 | 01602-01236 | washer, spring | 5 |
| 6 | 06000-22211 | bearing | 1 |
| 7 | 04065-01030 | ring, snap | 1 |
| 8 | 175-15-43272 | gear | 1 |
| 9 | 175-15-49340 | bearing | 1 |
| 10 | 175-15-43270 | bearing | 1 |
| 12 | 175-15-43232 | gear | 1 |
| 13 | 178-15-13240 | shaft, pinion | 1 |
| 14 | 178-15-19350 | bearing | 1 |
| 15 | 178-15-13140 | cover | 1 |
| 16 | 178-15-13260 | cage, bearing | 1 |
| 17 | 01010-31250 | bolt | 4 |
| 18 | 01602-01236 | washer, spring | 4 |
| 19 | 178-15-13360 | spacer | 1 |
| 20 | 178-15-13370 | spacer | 1 |
| 21 | 178-15-19330 | bearing | 1 |
| 22 | 178-15-13620 | plate, snap | 1 |
| 23 | 04081-07012 | plate, lock | 1 |
| 24 | 01010-31435 | bolt | 2 |
| 175-15-05011 | shim ass’y | 1 | |
| 28 | ☆ | 0.2mm shim, 0.2mm(175-15-13311) | 3 |
| 29 | ☆ | 0.2mm shim, 0.2mm(175-15-13331) | 3 |
| 30 | ☆ | 0.3mm shim, 0.3mm(175-15-13470) | 2 |
| 31 | ☆ | 0.3mm shim, 0.3mm(175-15-13480) | 2 |
| 32 | ☆ | 1.0mm shim, 1.0mm(175-15-13380) | 2 |
| 33 | ☆ | 1.0mm shim, 1.0mm(175-15-13390) | 2 |
| 175-15-05051 | shim ass’y | 1 | |
| 34 | ☆ | 0.2mm shim, 0.2mm(175-15-13311) | 1 |
| 35 | ☆ | 0.2mm shim, 0.2mm(175-15-13331) | 1 |
| 36 | ☆ | 0.3mm shim, 0.3mm(175-15-13470) | 2 |
| 37 | ☆ | 0.3mm shim, 0.3mm(175-15-13480) | 2 |
| 178-15-00121 | shim ass’y | 1 | |
| 40 | ☆ | 0.2mm shim, 0.2mm(175-15-13520) | 3 |
| 41 | ☆ | 0.3mm shim, 0.3mm(175-15-13540) | 3 |

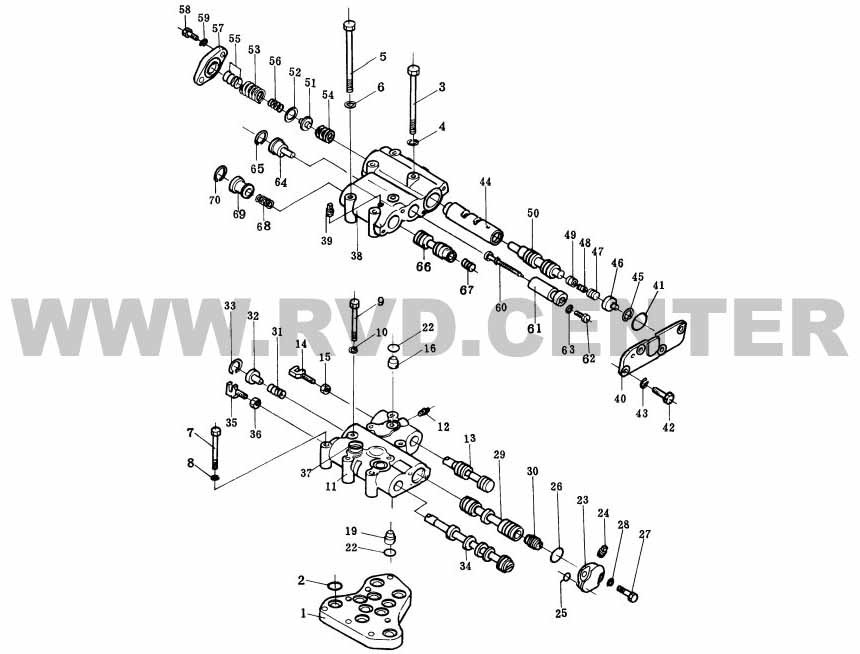

7. Клапан коробки переключения передач
| № | Каталожный номер | Описание | Количество |
| 175-15-00216 | Transmission ass’y | 1 | |
| 155-15-00370 | control valve ass’y | 1 | |
| 1 | 175-15-45110 | seat, valve | 1 |
| 2 | 07000-63022 | O-ring | 7 |
| 07000-63025 | O-ring | 3 | |
| 3 | 175-15-45180 | bolt | 3 |
| 4 | 01602-21030 | washer, spring | 3 |
| 5 | 175-15-45170 | bolt | 3 |
| 6 | 01602-21030 | washer, spring | 3 |
| 7 | 175-15-45160 | bolt | 1 |
| 8 | 01602-21030 | washer, spring | 1 |
| 9 | 01010-51075 | bolt | 1 |
| 10 | 01602-21030 | washer, spring | 1 |
| 11 | 175-15-45212 | body, valve | 1 |
| 12 | 144-15-25210 | plug | 1 |
| 13 | 175-15-45220 | spool, valve | 1 |
| 14 | 09363-01053 | yoke | 1 |
| 15 | 01580-11008 | nut | 1 |
| 16 | 175-15-45260 | detent, directional valve spool | 1 |
| 17 | 195-15-15680 | spring | 1 |
| 18 | 04260-00952 | ball | 1 |
| 19 | 195-15-15671 | detent, directional valve spool | 1 |
| 20 | 195-15-15680 | spring | 1 |
| 21 | 04260-00952 | ball | 1 |
| 22 | 07000-63022 | O-ring | 2 |
| 23 | 175-15-45471 | cover | 1 |
| 24 | 07042-00108 | plug, taper | 1 |
| 25 | 07000-62016 | O-ring | 1 |
| 26 | 07000-63032 | O-ring | 1 |
| 27 | 01010-51025 | bolt | 2 |
| 28 | 01602-21030 | washer | 2 |
| 29 | 175-15-45420 | spool valve | 1 |
| 30 | 175-15-35430 | piston | 1 |
| 31 | 195-15-15440 | spring | 1 |
| 32 | 175-15-45450 | retainer | 1 |
| 33 | 04065-03515 | ring, snap | 1 |
| 34 | 175-15-45231 | spool, valve | 1 |
| 35 | 09363-01053 | yoke | 1 |
| 36 | 01580-11008 | nut | 1 |
| 37 | 07000-63022 | O-ring | 3 |
| 38 | 155-15-15410 | body, valve | 1 |
| 39 | 07042-00108 | plug, taper | 1 |
| 40 | 155-15-15850 | cover | 1 |
| 41 | 07000-63040 | O-ring | 1 |
| 42 | 01010-51025 | bolt | 1 |
| 43 | 01602-21030 | washer, spring | 4 |
| 44 | 145-14-43381 | valve modulating | 1 |
| 45 | 130-09-15170 | ring, snap | 1 |
| 46 | 145-14-23180 | stopper | 1 |
| 47 | 175-15-15550 | valve modulating | 1 |
| 48 | 180-14-25560 | spring | 1 |
| 49 | 175-15-15540 | valve modulating | 1 |
| 50 | 145-14-43331 | spool valve | 1 |
| 51 | 145-14-43340 | seat, valve | 1 |
| 52 | 145-14-33450 | washer | 1 |
| 53 | 145-14-33351 | spring | 1 |
| 54 | 154-15-33430 | spring | 1 |
| 55 | 145-14-43370 | shim | 3 |
| 56 | 154-15-33420 | spring | 1 |
| 57 | 144-15-25380 | cover | 1 |
| 58 | 01010-51025 | bolt | 2 |
| 59 | 01602-21030 | washer, spring | 2 |
| 60 | 154-15-15320 | spool valve | 1 |
| 61 | 155-15-15351 | sleeve | 1 |
| 62 | 155-15-15370 | bolt | 1 |
| 63 | 01602-20619 | washer, spring | 1 |
| 64 | 155-15-15360 | stopper | 1 |
| 65 | 04065-03515 | ring, snap | 1 |
| 66 | 175-15-45380 | valve | 1 |
| 67 | 145-14-23720 | piston | 1 |
| 68 | 234-15-15230 | spring | 1 |
| 69 | 175-15-45390 | retainer | 1 |
| 70 | 04065-03515 | ring, snap | 1 |

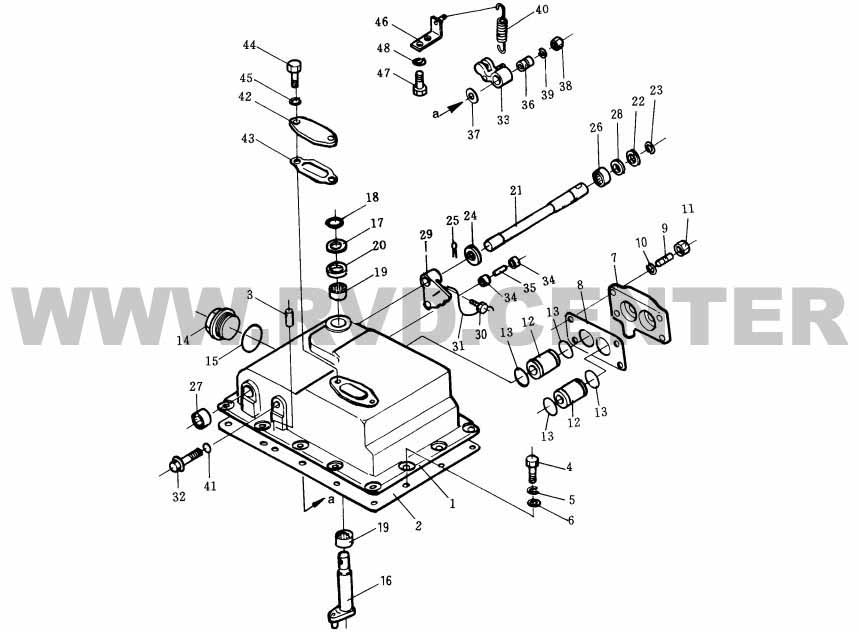

8. Крышка и клапан управления
| № | Каталожный номер | Описание | Количество |
| 175-15-00216 | Transmission ass’y | 1 | |
| 155-15-00370 | control valve ass’y | 1 | |
| 1 | 175-15-45510 | cover | 1 |
| 2 | 175-15-45520 | gasket | 1 |
| 3 | 04020-00820 | pin | 2 |
| 4 | 01010-51025 | bolt | 14 |
| 5 | 01602-21030 | washer, spring | 14 |
| 6 | 01640-21016 | washer | 14 |
| 7 | 175-15-45530 | cover, valve | 1 |
| 8 | 175-15-45540 | gasket | 1 |
| 9 | 01124-51025 | stud | 4 |
| 10 | 01602-21030 | washer, spring | 4 |
| 11 | 01580-11008 | nut | 4 |
| 12 | 175-15-45550 | sleeve | 2 |
| 13 | 07000-63028 | O-ring | 4 |
| 14 | 07040-15223 | plug | 1 |
| 15 | 07002-05234 | O-ring | 1 |
| 16 | 175-15-45560 | shaft | 1 |
| 17 | 175-15-45570 | washer | 1 |
| 18 | 04064-01812 | ring, snap | 1 |
| 19 | 06120-02016 | bearing, needle | 2 |
| 20 | 144-15-29110 | seal, oil | 1 |
| 21 | 175-15-45610 | shaft | 1 |
| 22 | 175-15-45570 | washer | 1 |
| 23 | 04064-01812 | ring, snap | 1 |
| 24 | 175-15-45620 | stopper | 1 |
| 25 | 04050-03040 | pin, cotter | 1 |
| 26 | 06120-02016 | bearing, needle | 1 |
| 27 | 06121-02016 | bearing, needle | 1 |
| 28 | 144-15-29110 | seal, oil | 1 |
| 29 | 175-15-45630 | lever | 1 |
| 30 | 125-15-11530 | bolt | 1 |
| 31 | 04059-01010 | wire, lock | 1 |
| 32 | 175-15-45650 | bolt | 1 |
| 33 | 175-15-45690 | lever | 1 |
| 34 | 144-15-29120 | bearing | 2 |
| 35 | 144-15-25690 | bearing | 1 |
| 36 | 175-15-45670 | sleeve | 1 |
| 37 | 175-15-45660 | washer | 2 |
| 38 | 01580-11008 | nut | 1 |
| 39 | 01602-21030 | washer, spring | 1 |
| 40 | 175-15-45710 | spring | 1 |
| 41 | 07002-01223 | O-ring | 1 |
| 42 | 175-15-45750 | plate | 1 |
| 43 | 175-15-45760 | gasket | 1 |
| 44 | 01010-51020 | bolt | 2 |
| 45 | 01602-21030 | washer, spring | 2 |
| 46 | 175-15-45780 | bracket | 1 |
| 47 | 01010-51020 | bolt | 2 |
| 48 | 01602-21030 | washer, spring | 2 |

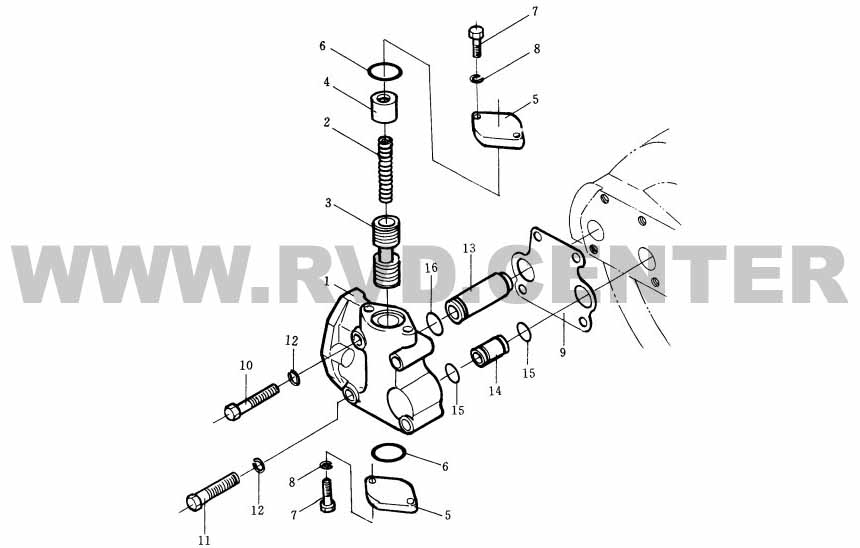

9. Смазочный клапан
| № | Каталожный номер | Описание | Количество |
| 175-15-44005 | lubricating valve ass’y | 1 | |
| 1 | 175-15-14111 | body valve | 1 |
| 2 | 175-15-14120 | spring, return | 1 |
| 3 | 175-15-14130 | valve lubricating | 1 |
| 4 | 175-15-14141 | guide, valve | 1 |
| 5 | 175-15-14150 | cover | 2 |
| 6 | 07000-63032 | O-ring | 2 |
| 7 | 01010-50825 | bolt | 4 |
| 8 | 01602-20825 | washer, spring | 4 |
| 9 | 175-15-14161 | gasket | 1 |
| 10 | 01010-51055 | bolt | 2 |
| 11 | 01010-31065 | bolt | 2 |
| 12 | 01602-21030 | washer, spring | 4 |
| 13 | 175-15-44190 | sleeve | 1 |
| 14 | 175-15-44180 | sleeve | 1 |
| 15 | 07000-62018 | O-ring | 2 |
| 16 | 07000-63032 | O-ring | 1 |

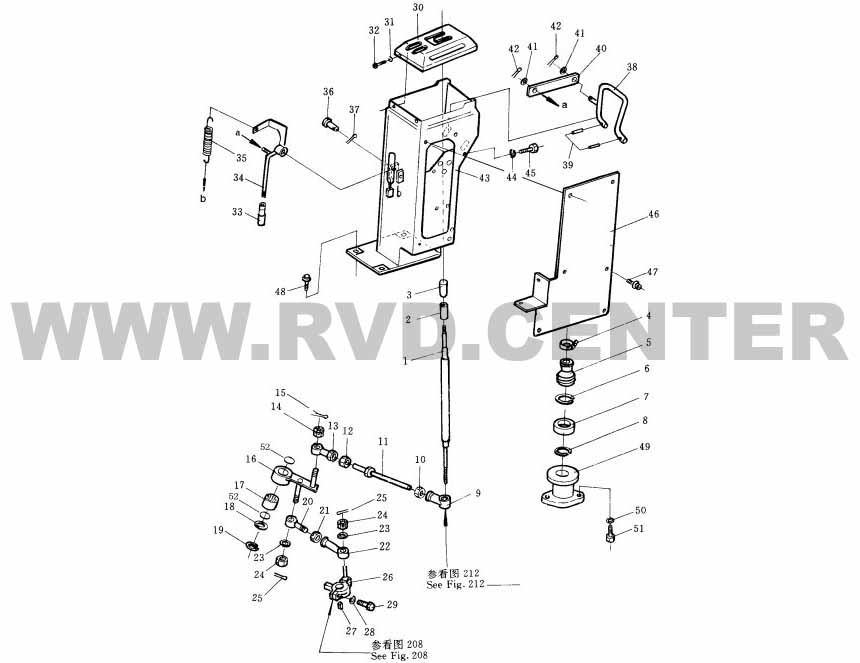

10. Рычаг переключения
| № | Каталожный номер | Описание | Количество |
| 1 | 175-43-54141 | lever | 1 |
| 2 | 09361-01460 | bushing | 1 |
| 3 | 09304-01240 | knob | 1 |
| 4 | 07281-00359 | clip | 1 |
| 5 | 175-43-54230 | hose | 1 |
| 6 | 04065-03012 | ring, snap | 1 |
| 7 | 195-43-25310 | bushing | 1 |
| 8 | 04064-01710 | ring, snap | 1 |
| 9 | 04250-61056 | joint bearing | 1 |
| 10 | 01508-21006 | nut | 1 |
| 11 | 04248-31044 | lever | 1 |
| 12 | 01582-11008 | nut | 1 |
| 13 | 04250-41056 | joint bearing | 1 |
| 14 | 01593-11008 | nut | 1 |
| 15 | 04050-12018 | pin | 1 |
| 16 | 175-43-42750 | linkage | 1 |
| 17 | 06120-02016 | HK202612 bearing | 1 |
| 18 | 01640-22032 | washer | 1 |
| 19 | 04064-02012 | ring, snap | 1 |
| 20 | 04252-01061 | joint bearing | 1 |
| 21 | 01582-11008 | nut | 1 |
| 22 | 04250-41056 | joint bearing | 1 |
| 23 | 04254-01032 | ring, snap | 2 |
| 24 | 01593-11008 | nut | 2 |
| 25 | 04050-12018 | pin | 2 |
| 26 | 175-43-41241 | linkage | 1 |
| 27 | 04010-10516 | key | 1 |
| 28 | 01602-20825 | washer | 1 |
| 29 | 01010-50830 | bolt | 1 |
| 30 | 175-43-38262 | plate | 1 |
| 31 | 01643-30823 | washer | 4 |
| 32 | 01220-40816 | screw | 4 |
| 33 | 09305-00800 | knob | 1 |
| 34 | 175-43-41252 | lever | 1 |
| 35 | 175-43-38270 | spring | 1 |
| 36 | 04205-11658 | shaft | 1 |
| 37 | 04050-14026 | pin | 1 |
| 38 | 175-43-54191 | lever | 1 |
| 39 | 04050-11610 | pin | 4 |
| 40 | 175-43-54211 | lever | 1 |
| 41 | 01640-20610 | washer | 2 |
| 42 | 04050-11610 | pin | 4 |
| 43 | 175-43-41115 | case | 1 |
| 44 | 01643-31232 | washer | 8 |
| 45 | 01010-51225 | bolt | 6 |
| 46 | 175-43-41863 | plate | 1 |
| 47 | 195-54-26210 | screw | 8 |
| 48 | 195-54-26230 | screw | 1 |
| 49 | 195-43-25290 | bracket | 1 |
| 50 | 01643-31032 | washer | 2 |
| 51 | 01010-51025 | bolt | 2 |
| 52 | 06122-02004 | ring, seal | 2 |

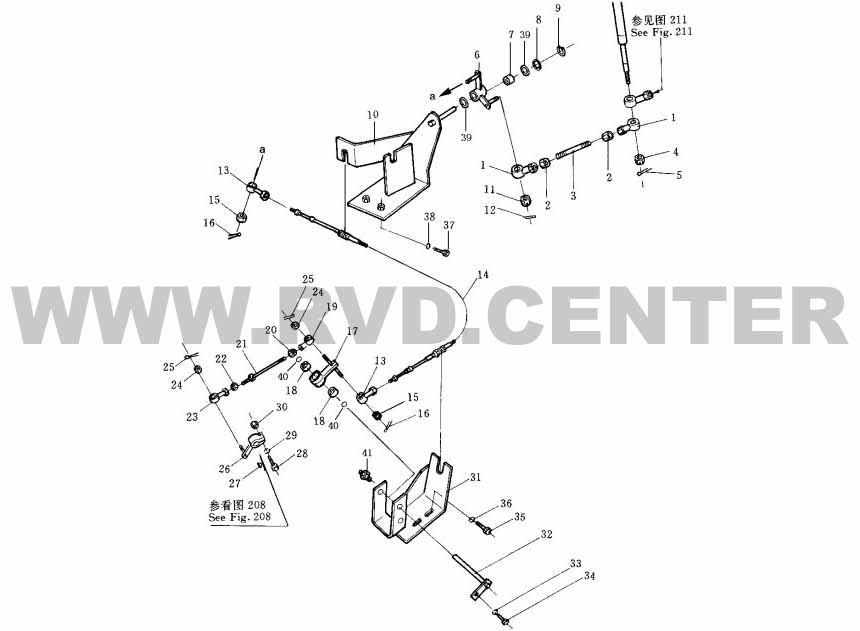

11. Рычаг переключения
| № | Каталожный номер | Описание | Количество |
| 1 | 04250-41056 | joint bearing | 2 |
| 2 | 01582-11008 | nut | 2 |
| 3 | 04245-41007 | rod | 1 |
| 4 | 01593-11008 | nut | 1 |
| 5 | 04050-12018 | pin | 1 |
| 6 | 175-43-41234 | lever | 1 |
| 7 | 06120-02016 | HK202612 bearing | 1 |
| 8 | 01640-21826 | washer | 1 |
| 9 | 04064-01812 | ring, snap | 1 |
| 10 | 175-43-42680 | bracket | 1 |
| 11 | 01593-11008 | nut | 1 |
| 12 | 04050-12018 | pin | 1 |
| 13 | 195-43-25170 | joint bearing | 2 |
| 14 | 195-43-25180 | flexible shaft | 1 |
| 15 | 01593-11008 | nut | 2 |
| 16 | 04050-12018 | pin | 2 |
| 17 | 175-43-42570 | lever | 1 |
| 18 | 06120-01612 | HK162212 bearing | 2 |
| 19 | 04250-61056 | joint bearing | 1 |
| 20 | 01508-21006 | nut | 1 |
| 21 | 04248-31026 | rod | 1 |
| 22 | 01582-11008 | nut | 1 |
| 23 | 04250-41056 | joint bearing | 1 |
| 24 | 01593-11008 | nut | 2 |
| 25 | 04050-12018 | pin | 2 |
| 26 | 175-43-41311 | lever | 1 |
| 27 | 04010-10516 | key | 1 |
| 28 | 01016-50850 | bolt | 1 |
| 29 | 01602-20825 | washer | 1 |
| 30 | 01580-10806 | nut | 1 |
| 31 | 175-43-42560 | bracket | 1 |
| 32 | 175-43-42581 | shaft | 1 |
| 33 | 01602-20619 | washer | 1 |
| 34 | 01010-50616 | bolt | 1 |
| 35 | 01010-51225 | bolt | 1 |
| 36 | 01643-31232 | washer | 2 |
| 37 | 01010-51230 | bolt | 2 |
| 38 | 01643-31232 | washer | 2 |
| 39 | 06122-02004 | ring, seal | 2 |
| 40 | 06122-01603 | ring, seal | 2 |
| 41 | 07020-00613 | fitting, grease | 1 |

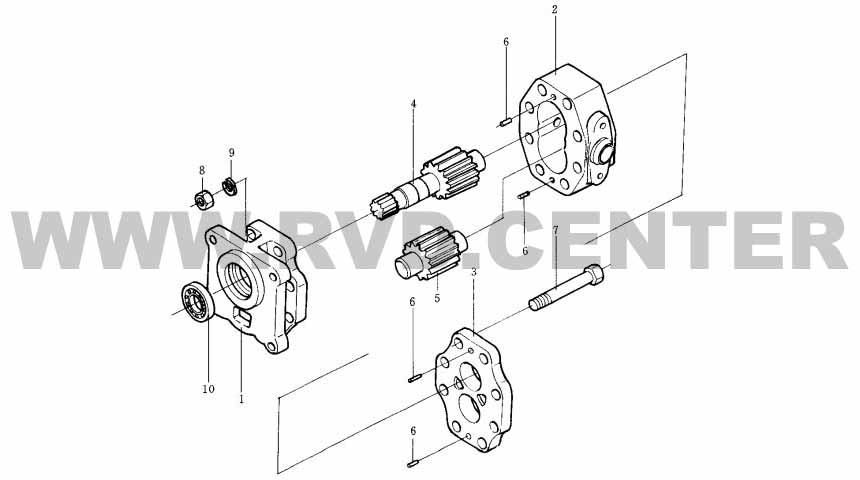

12. Насос трансмиссии
| № | Каталожный номер | Описание | Количество |
| 07433-71103 | transmission pump ass’y | 1 | |
| 1 | 07430-71113 | pump seat ass’y | 1 |
| 2 | 07433-71021 | case, gear pump | 1 |
| 3 | 07430-71132 | housing pump ass’y | 1 |
| 4 | 07433-71042 | gear, drive | 1 |
| 5 | 07433-71052 | gear, driven | 1 |
| 6 | 04020-00820 | pin, dowel | 4 |
| 7 | 01050-51295 | bolt | 8 |
| 8 | 01582-11210 | nut | 8 |
| 9 | 01602-21236 | washer | 8 |
| 10 | 07430-71160 | seal, oil | 1 |

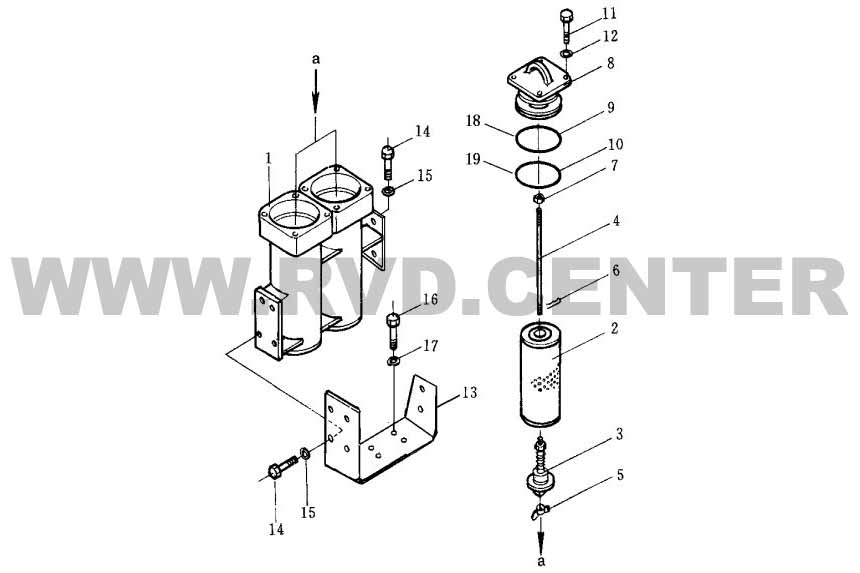

13. Масляный фильтр коробки переключения передач
| № | Каталожный номер | Описание | Количество |
| 1 | 171-74-01000 | case | 1 |
| 2 | 175-49-11580 | element | 2 |
| 3 | 175-49-25530 | valve ass’y | 2 |
| 4 | 175-49-25540 | rod | 2 |
| 5 | 01540-01050 | nut | 2 |
| 6 | 04050-02018 | pin, cotter | 2 |
| 7 | 01582-01008 | nut | 2 |
| 8 | 195-49-13740 | cover | 2 |
| 9 | 07000-02115 | O-ring | 2 |
| 10 | 07000-02110 | O-ring | 2 |
| 11 | 01010-51440 | bolt | 8 |
| 12 | 01643-31445 | washer | 8 |
| 13 | 171-74-00001 | bracket | 1 |
| 14 | 01010-51235 | bolt | 6 |
| 15 | 01602-21236 | washer | 6 |
| 16 | 01010-51035 | bolt | 4 |
| 17 | 01602-21030 | washer | 4 |
| 18 | 07000-02115 | O-ring | 2 |
| 19 | 07000-42110 | O-ring | 2 |

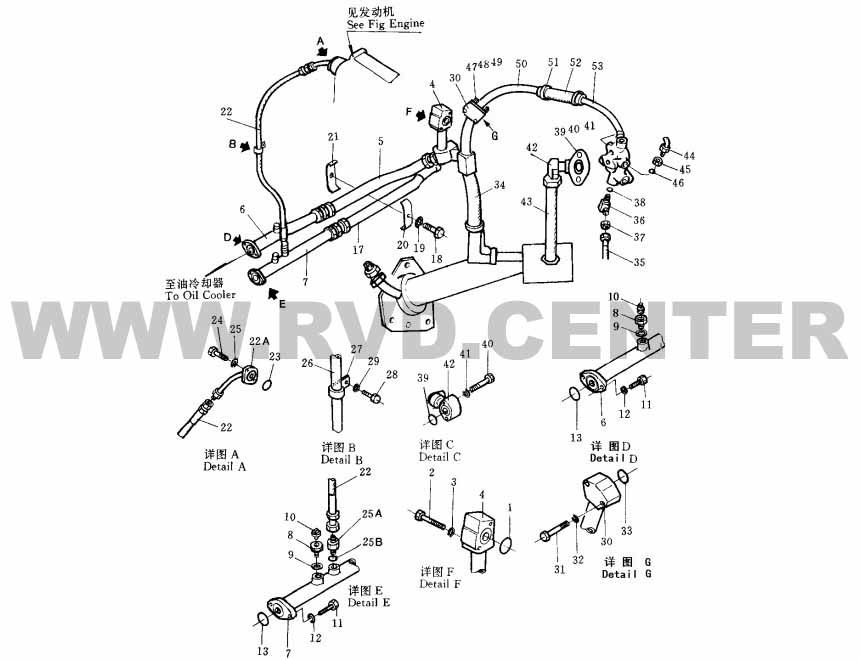

14. Гидравлическая схема трансмиссии
| № | Каталожный номер | Описание | Количество |
| 1 | 07000-03042 | O-ring | 1 |
| 2 | 01010-51070 | bolt | 2 |
| 3 | 01602-21030 | washer | 2 |
| 4 | 175-49-C1160 | tube | 1 |
| 5 | 07100-21406 | hose | 1 |
| 6 | 175-49-C1180 | tube | 1 |
| 7 | 175-49-C1190 | tube | 1 |
| 8 | 154-19-17122 | plug | 2 |
| 9 | 07005-01612 | gasket | 2 |
| 10 | 07042-10108 | plug | 2 |
| 11 | 01010-51040 | bolt | 4 |
| 12 | 01602-21030 | washer | 4 |
| 13 | 07000-03042 | O-ring | 2 |
| 17 | 07100-21406 | hose | 1 |
| 18 | 01010-51050 | bolt | 1 |
| 19 | 01602-21030 | washer, spring | 1 |
| 20 | 175-61-14760 | clamp | 1 |
| 21 | 175-61-14770 | clamp | 1 |
| 22 | 07102-20406 | hose | 1 |
| 22A | 175-49-C1210 | tube | 1 |
| 23 | 07000-03028 | O-ring | 1 |
| 24 | 01010-51030 | bolt | 2 |
| 25 | 01602-21030 | washer, spring | 2 |
| 25A | 07230-10422 | nipple | 1 |
| 25B | 07002-02034 | O-ring | 1 |
| 26 | 150-04-12320 | tube | 1 |
| 27 | 154-04-12420 | clamp | 1 |
| 28 | 01010-51220 | bolt | 1 |
| 29 | 01602-21236 | washer, spring | 1 |
| 30 | 175-49-C1221 | tube | 1 |
| 31 | 01010-51075 | bolt | 2 |
| 32 | 01602-21236 | washer, spring | 2 |
| 33 | 07000-03040 | O-ring | 1 |
| 34 | 07102-20603 | hose | 1 |
| 35 | 07102-21004 | hose | 1 |
| 36 | 07232-11034 | nipple | 2 |
| 37 | 07239-13320 | nut | 2 |
| 38 | 07002-03334 | O-ring | 1 |
| 39 | 07000-03028 | O-ring | 1 |
| 40 | 01010-51055 | bolt | 2 |
| 41 | 01602-21030 | washer, spring | 2 |
| 42 | 175-49-21483 | tube | 1 |
| 43 | 07102-20403 | hose | 1 |
| 44 | 175-49-23510 | elbow | 1 |
| 45 | 07239-13320 | nut | 1 |
| 46 | 07002-03334 | O-ring | 1 |
| 47 | 01010-50820 | bolt | 2 |
| 48 | 01602-21030 | washer, spring | 2 |
| 49 | 07000-03035 | O-ring | 1 |
| 50 | 175-49-25680 | tube | 1 |
| 51 | 07281-00549 | clamp | 2 |
| 52 | 07260-03213 | hose | 1 |
| 53 | 175-49-21434 | tube | 1 |

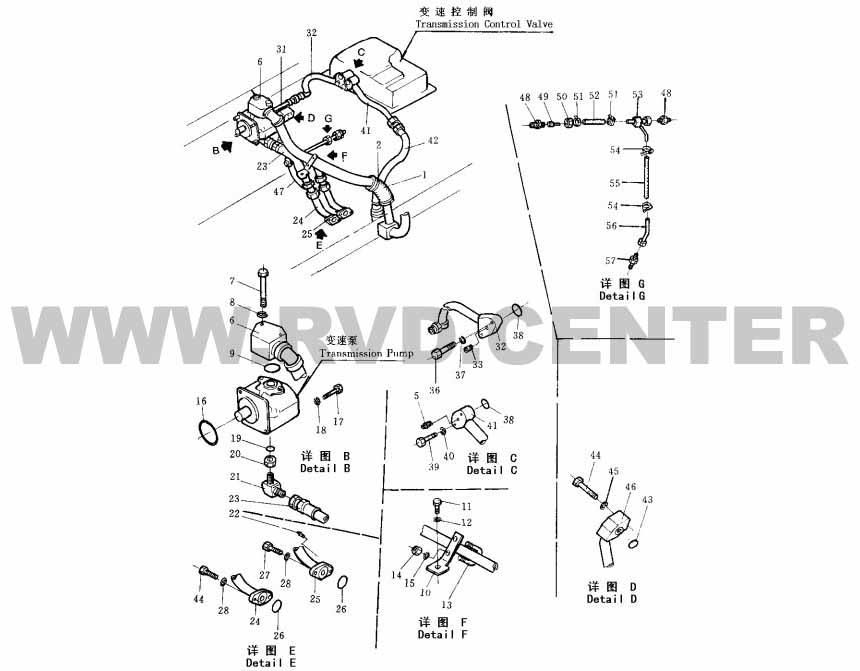

15. Крепление гидравлической системы
| № | Каталожный номер | Описание | Количество |
| 1 | 07260-04117 | hose | 1 |
| 2 | 07281-00609 | clamp | 2 |
| 5 | 07042-30108 | plug | 1 |
| 6 | 175-49-22124 | tube | 1 |
| 7 | 01010-51080 | bolt | 2 |
| 8 | 01602-21030 | washer, spring | 2 |
| 9 | 0700-03032 | O-ring | 1 |
| 10 | 175-49-22134 | bracket | 1 |
| 11 | 01010-51635 | bolt | 1 |
| 12 | 01643-31645 | washer | 1 |
| 13 | 07283-24354 | U-type clamp | 1 |
| 14 | 01599-01011 | nut | 2 |
| 15 | 01643-31032 | washer | 2 |
| 16 | 07000-03075 | O-ring | 1 |
| 17 | 01010-51030 | bolt | 4 |
| 18 | 01602-21030 | washer, spring | 4 |
| 19 | 07002-02434 | O-ring | 1 |
| 20 | 07239-12410 | nut | 1 |
| 21 | 07232-10628 | nipple | 1 |
| 22 | 07042-10108 | plug | 1 |
| 23 | 07102-20603 | hose | 1 |
| 24 | 24G-74-06000 | tube | 1 |
| 25 | 175-49-22143 | tube | 1 |
| 26 | 07000-03035 | O-ring | 2 |
| 27 | 01010-51035 | bolt | 2 |
| 28 | 01602-21030 | washer, spring | 4 |
| 31 | 07102-20606 | hose | 1 |
| 32 | 175-49-23862 | tube | 1 |
| 33 | 07042-10108 | plug, taper | 1 |
| 36 | 01010-51065 | bolt | 2 |
| 37 | 01602-21030 | washer, spring | 2 |
| 38 | 07000-03028 | O-ring | 2 |
| 39 | 01010-51055 | bolt | 2 |
| 40 | 01602-21030 | washer, spring | 2 |
| 41 | 175-49-21235 | tube | 1 |
| 42 | 07102-20603 | hose | 1 |
| 43 | 07000-03025 | O-ring | 1 |
| 44 | 01010-51060 | bolt | 2 |
| 45 | 01602-21030 | washer, spring | 2 |
| 46 | 175-49-21472 | tube | 1 |
| 47 | 07102-20603 | hose | 1 |
| 48 | 07213-51521 | nipple | 2 |
| 49 | 175-49-11911 | tube | 1 |
| 50 | 07201-51527 | nut | 1 |
| 51 | 07281-00259 | clamp | 2 |
| 52 | 07260-21410 | hose | 1 |
| 53 | 175-49-23570 | tube | 1 |
| 54 | 07281-00197 | clamp | 2 |
| 55 | 07260-20922 | hose | 1 |
| 56 | 175-49-23580 | tube | 1 |
| 57 | 07213-51013 | nipple | 1 |
